Fiber Optic Combiner

Fiber Optic Combiner

A fiber optic pump combiner is based on coupling technology to combine different pump lights into a single fiber to transmit, hence increasing the output power of the laser. According to construction, it can be divided into N1 fiber optic pump combiner and (N+1) fiber optic pump combiner. An N1 fiber optic combiner doesn’t have signal optical fiber, but an (N+1) combiner has it.


Get Quote Now

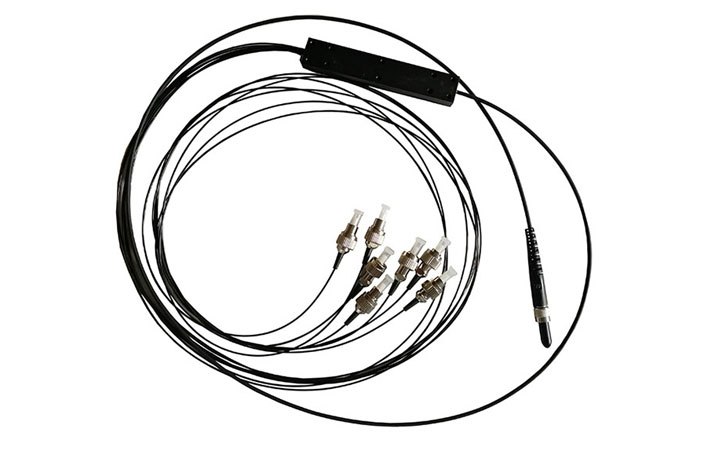

Fiber Optic Combiner
Features of Fiber Optic Combiner

Features of Fiber Optic Combiner

Different Functions

Fiber optic combiner can achieve different functions in laser system by using different types of fiber, such as single-mode fiber, multi-mode fiber and large mode area fiber.


Multiple Applications

Fiber optic pump combiners have multiple applications, such as in fiber laser, fiber amplifier, high power EDFA and Sensor systems.


Customizable Product

Like other optical passive components, fiber optic combiner is also customizable, its power, configuration, fiber type, wavelength and package can be tailored according to requirements.


Different Types

Fiber optic pump combiners are usually divided into 3 main types: multi-mode (Nx1), (N+1)x1 Pump and Single-mode Signal Combiners, (N+1)x1 Pump and PM Signal Combiners.


Advantages of Fiber Optic Pump Combiner

2
The multimode combiners usually can handle a wide range of power configurations and suit different fiber types.
3
With great optical performance and very low transmission loss.
4
Compact package to save space inside the equipment.
5
Wide range of pump wavelength.
1
The multimode pump combiners are designed to create high power output for high power applications like fiber lasers and fiber amplifiers.

Fiber Optic Solutions We Serve

PHX FIBER products are widely applied in fiber optical communication systems, fiber optic sensors, CATV, fiber lasers and other fiber optical instruments, etc.
Optical sensing is the key technology of self-driving because a self-driving car relies on a sensor system to perceive and navigate its surrounding environment accurately to ensure safety.
Optical technology in Autonomous Vehicles
Application of fiber optic passive components enable the engineering implementation of full fiber network to realize, and improve the performance of optical communication system.
Optical Fiber Used in Optical Communication System
Passive Optical LAN is of higher Efficiency, Security and energy conservation, but lower cost.
Optical Fiber Used In Local Area Networks
Connection, distribution, isolation and filtration of optical fiber passive components play important parts in CATV system.
Optical Fiber Used In CATV Systems
/
