PLC Splitter Device

PLC Splitter Device

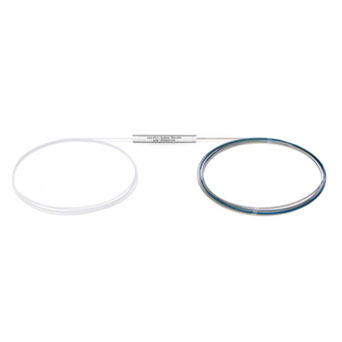

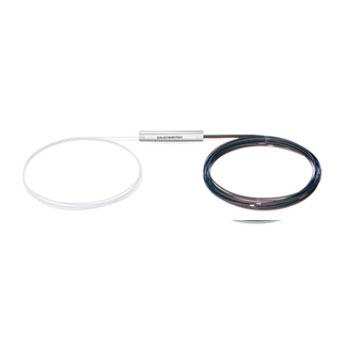

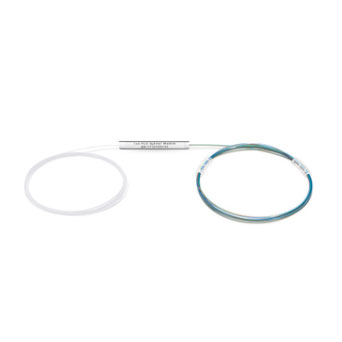

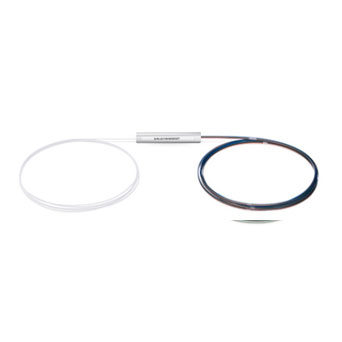

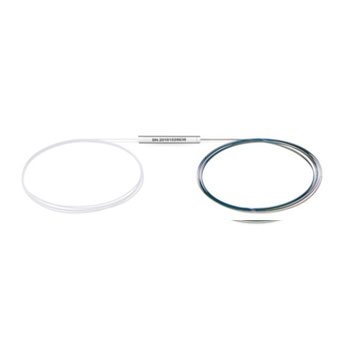

PHX ABS box PLC planar waveguide beam splitter can provide 1x2, 1x4, 1x8, 1x16 and 1x32 PLC splitter.The fiber plc splitter adopts bare fiber to simplify network configuration and reduce budget cost. This kind of fiber plc splitter is applied to PON system.
Get Quote Now
PLC Splitter Device
PLC Splitter Device
PLC Splitter Device
PLC Splitter Device
PLC Splitter Device

Characteristics of PLC Splitter Device

1. Fiber optic plc splitter has stable transmission performance

2. The optical signal of FTTH splitter is evenly distributed

1x2 250μm Bare fiber PLC planar waveguide optical splitter without connector

Package type

Steel pipe, bare fiber

Port configuration

1X2

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

/

Spectral ratio

50/50

Fiber type

Banded

Steel size(H x W x D)

4x40x4mm

Fiber diameter

250μm

Fiber length

1.5M

IL

≤3.8dB

RL

≥55dB

UF

≤0.4dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃



1x4 250μm Bare fiber PLC planar waveguide optical splitter without connector

Package type

Steel pipe, bare fiber

Port configuration

1X4

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

/

Spectral ratio

50/50

Fiber type

Banded

Steel size(H x W x D)

4x40x4mm

Fiber diameter

250μm

Fiber length

1.5M

IL

≤7.1dB

RL

≥55dB

UF

≤0.6dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃



1x8 250μm Bare fiber PLC planar waveguide optical splitter without connector

Package type

Steel pipe, bare fiber

Port configuration

1X8

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

/

Spectral ratio

50/50

Fiber type

Banded

Steel size(H x W x D)

4x40x4mm

Fiber diameter

250μm

Fiber length

1.5M

IL

≤10.3dB

RL

≥55dB

UF

≤0.8dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃



1x16 250μm Bare fiber PLC planar waveguide optical splitter without connector

Package type

Steel pipe, bare fiber

Port configuration

1X16

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

/

Spectral ratio

50/50

Fiber type

Banded

Steel size(H x W x D)

4x40x4mm

Fiber diameter

250μm

Fiber length

1.5M

IL

≤13.5dB

RL

≥55dB

UF

≤1.2dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃



1x32 250μm Bare fiber PLC planar waveguide optical splitter without connector

Package type

Steel pipe, bare fiber

Port configuration

1X32

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

/

Spectral ratio

50/50

Fiber type

Banded

Steel size(H x W x D)

4x40x4mm

Fiber diameter

250μm

Fiber length

1.5M

IL

≤16.8dB

RL

≥55dB

UF

≤1.5dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃
