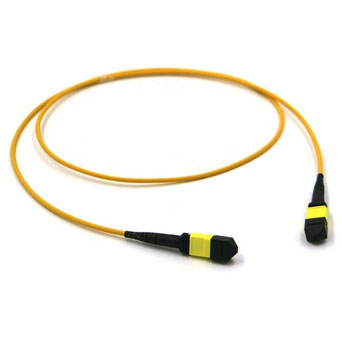

MPO/MTP Trunk Cable

MPO/MTP Trunk Cable

100% pre-terminated and tested in the factory to ensure transfer performance. Rapid configuration and networking, reduce installation time. Supports 40G and 100G network applications. Jacket material: LSZH, OFNR, OFNP available. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Get Quote Now
MPO/MTP Trunk Cable

Connector Types of MPO/MTP Trunk Cable

Item

Parameter

Single Mode

Multimode

Insertion Loss

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.15dB

Maximum≤0.30dB

Return Loss

≥60dB (APC)

≥50dB (UPC)

≥30dB (UPC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Cable Parameters of MPO/MTP Trunk Cable


Cable

Count

Out sheath

Diameter

(MM)

Weight

(KG)

Minimum allowable

Tensile Strength

(N)

minimum allowable

Crush Load

(N/100mm)

Minimum Bending

Radius

(MM)

Storage

temperature

(℃)

short term

long term

short term

long term

short term

long term

24

4.5±0.2

32

560

250

750

300

20D

10D

-20~+70

12

(5.1±0.3)*(2.3±0.3)

11.6

150

80

500

200

20D

10D

48

9.5±0.3

79

500

180

1000

300

20D

10D

72

11.5±0.3

126

1000

300

1000

300

20D

10D

96

13.5±0.5

178

1000

300

1000

300

20D

10D

144

17.5±0.5

285

1000

300

1000

300

20D

10D



Optical Characteristics of MPO/MTP Trunk Cable

Item

Parameter

Reference

Single mode

Multimode

Standard

Elite

Standard

Elite

Insertion loss

Typical value≤0.3dB

Maximum≤0.75dB

Typical value≤0.15dB

Maximum≤0.35dB

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.10dB

Maximum≤0.35dB

IEC 61300-3-34

Return loss

≥60dB(APC)

≥50dB(UPC)

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

≥30dB(UPC)

IEC 61300-3-6


Features

1. The style is diverse, the interface is complete.

2. 100% pre-terminated and tested in factory to ensure transfer performance

3. Rapid configuration and networking, reduce installation time

4. Supports 40G and 100G network applications

5. Jacket material: LSZH, OFNR, OFNP available

6. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available


Application

1. Optical fiber communication systems engineering.

2. Data communication network

3. Optical System Access network

4. Storage area networking fiber channel

5. High density architectures
