MT Patch Cords

MT Patch Cords

Transmission rate: 40Gbps/100Gbps/168Gbps. GR-1435 compliant. Simple structure easy to locate. Low cost. Customized products are available.
Get Quote Now

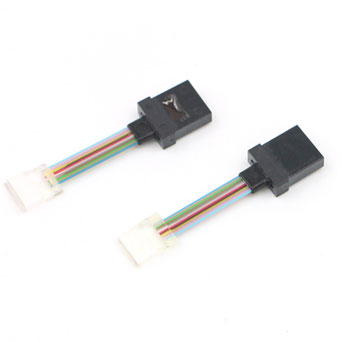

MT Patch Cords

Product Parameters of MT Patch Cords

Performance Level

Standard

Elite

Connector

Mode

Endface

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MT

SM

12F/APC

≤0.50

≥60

≤0.35

≥60

MM

12F/PC

≤0.50

≥20

≤0.35

≥20


MPO&MTP Optical Characteristics of MT Patch Cords

Item

Parameter

Reference

Single Mode

Multimode

Standard

Elite

Standard

Elite

Insertion Loss

Typical value≤0.3dB

Maximum≤0.75dB

Typical value≤0.15dB

Maximum≤0.35dB

Typical value≤0.5dB

Maximum≤0.25dB

Typical value≤0.10dB

Maximum≤0.35dB

IEC 61300-3-34

Return Loss

≥60dB (APC)

≥50dB (UPC)

≥65dB (APC)

≥55dB (UPC)

≥30dB (UPC)

≥30dB (UPC)

IEC 61300-3-6


Features

1. Transmission rate: 40Gbps/100Gbps/168Gbps.

2. GR-1435 compliant.

3. Simple structure easy to locate.

4. Low cost.

5. Customized products available.


Application

1. QSFP quad small form-factor pluggable.

2. SFP+active optical cables.

3. Parallel light optical transceiver module.

4. Communication.

5. Military applications.

6. Data centers.

7. Super computers.
