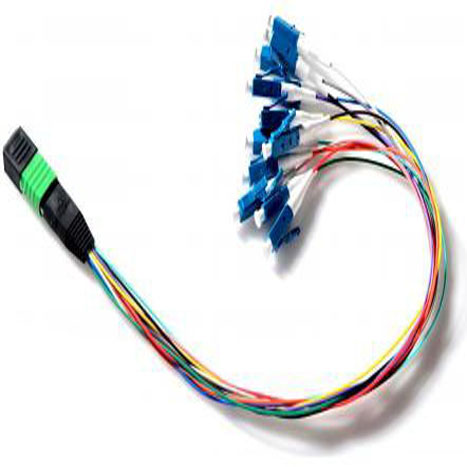

MPO/MTP Fan out 0.9mm Patch Cords Cables

MPO/MTP Fan out 0.9mm Patch Cords Cables

MPO/MTP fan out 0.9 mm patch cords cables are economical solution for mass-termination of fiber and are designed for low loss and standard loss SM and MM applications. They are ruggedized round cable, oval cable and bare ribbon options available. And they are color coded housings available to differentiate fiber type, polish type and/or connector grade. They are good in repeatability and exchangeability.
Get Quote Now
MPO/MTP Fan out 0.9mm Patch Cords Cables

MPO&MTP Optical Characteristics


Item

Parameter

Reference

Single mode

Multimode

Standard

Elite

Standard

Elite

Insertion loss

Typical value≤0.3dB

Maximum≤0.75dB

Typical value≤0.15dB

Maximum≤0.35dB

Typical value≤0.5dB

Maximum≤0.25dB

Typical value≤0.10dB

Maximum≤0.35dB

IEC 61300-3-34

Return loss

≥60dB(APC)

≥50dB(UPC)

≥65dB(APC)

≥55dB(UPC)

≥30dB(UPC)

≥30dB(UPC)

IEC 61300-3-6



LC/SC/FC/ST Optical Characteristics

Item

Parameter

Reference

Single mode

Multimode

Insertion loss

Typical value≤0.15dB

Maximum≤0.3dB

Typical value≤0.15dB

Maximum≤0.3dB

IEC 61300-3-34

Return loss

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

IEC 61300-3-6



Features

1. Economical solution for mass-termination of fiber

2. Designed for low loss and standard loss SM and MM applications

3. Ruggedized round cable, oval cable and bare ribbon options available

4. Color coded housings available to differentiate fiber type, polish type and/or connector grade

5. Good in repeatability  and exchangeability


Application

1. Data communication network

2. Optical System Access network

3. Storage area networking fiber channel

4. High density architectures
