WDM Rack Mount

WDM Rack Mount

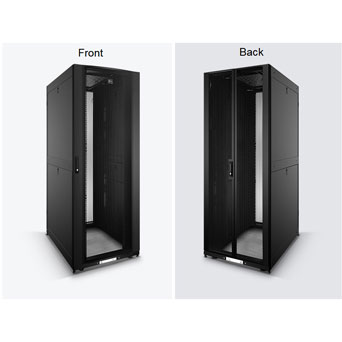

The server cabinet shall consist of welded and assembled steel frame construction, supporting computer server and data storage equipment by providing additional space at the rear for cable management and front-to-rear airflow solutions.
Get Quote Now
WDM Rack Mount

Parameters of WDM Network Rack Mount Cabinet Enclosure

Parameter

4 Channel

8 Channel

16 Channel

18 Channel


Mux

Demux

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610/1271~1611

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

+/-7.5/+/-6.5

Insertion Loss (dB)

≤1.5

≤2.5

≤3.5

≤3.5

Channel Uniformity (dB)

≤0.6

≤1.0

≤1.5

≤1.5

Channel Ripple (dB)

0.3

Isolation (dB)

Adjacent

>30


Non-adjacent

>40

Insertion Loss (dB)

Express with filter

>30


Express without filter

>12

Inertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion (ps)

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

300

Opterating Temperature (℃)

-40~+85

Storage Temperature (℃)

-40~+85

Package Dimension (mm) (LGX box)

L155.5xW102(129)xH29
