GJYFJH Indoor/Outdoor Cable

GJYFJH Indoor/Outdoor Cable

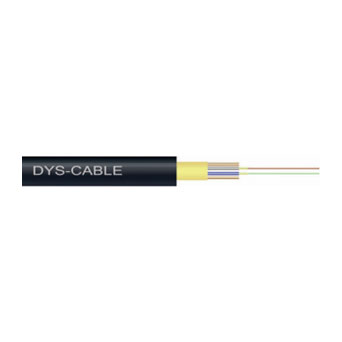

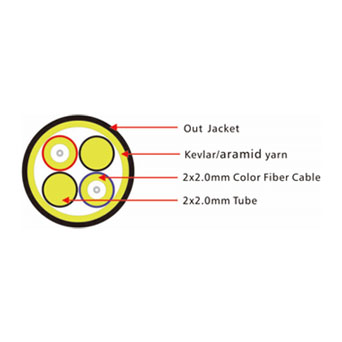

GJYFJH Indoor/Outdoor Cable used as the optical transmission medium with 2.0mm subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket. (PVC, LSZH, TPU, PE or other materials according to customer's requirements).
Get Quote Now
GJYFJH Indoor/Outdoor Cable
GJYFJH Indoor/Outdoor Cable

Description of GJYFJH Indoor/Outdoor Cable

GJYFJH Indoor/Outdoor Cable used as the optical transmission medium with 2.0mm subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket. (PVC, LSZH, TPU, PE or other materials according to customer's requirements).



Features of GJYFJH Indoor/Outdoor Cable

• Good mechanical and temperature characteristics.

• Good lateral compression and flexibility.

• Small diameter, light weight, easy to connect, and support large capacity data transmission.

• Outer jacket material has the advantages of water proof, flame retardant, environmental protection.



Application of GJYFJH Indoor/Outdoor Cable

• Remote base station communication such as RRU or BBU.

• Smart substation and CATV Outdoor application.

• Emergency access to optical fiber communication.

• Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.


Technical Parameters of GJYFJH Indoor/Outdoor Cable

Cable type

OD(mm)

Nominal

Weight

(kg/km)

Tensile Strength(N)

Bending Radius(mm)

Crush Resistance(N/100MM)

Short-term

Long-term

Dynamic

Static

Short-

term

Long-

term

GJYFJH-2xn

7.0±0.2

42.5

800

400

20D

15D

1000

500

GJYFJH-4xn

7.0±0.2

43.5

800

400

20D

15D

1000

500

Storage/Working temperature(℃)

-20~+60

Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length of GJYFJH Indoor/Outdoor Cable

• Standard wooden drum with protection.

• Standard reel length:2/3 km/reel, other length is also available.
