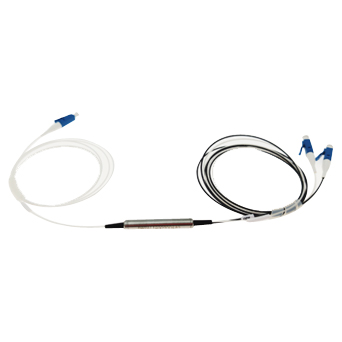

100G, 200G, 1X2 DWDM Single Device (3 PORTS)

100G, 200G, 1X2 DWDM Single Device (3 PORTS)

100G, 200G,1×2 DWDM single device has low insertion loss, which makes the DWDM single device have low signal attenuation when used in WDM system to reduce the power requirements for signal transmission. At the same time, DWDM single device has a high degree of isolation, which can fully isolate the signals during multi signal transmission to effectively prevent the distortion of transmission signals caused by mutual crosstalk between signals.
Get Quote Now
100G, 200G, 1X2 DWDM Single Device (3 PORTS)

Characteristics of 100G, 200G, 1X2 DWDM Single Device (3 PORTS)

1. Low insertion loss

2. High stability

Parameters of 100G, 200G, 1X2 DWDM Single Device (3 PORTS)

Channel Wavelength (nm)

ITU Grid

Channel spacing (nm)

100G

200GHz

Channel spacing channel bandwidth (@ - 0.5dB bandwidth (nm)

>0.3

>0.5

Insertion loss (DB)

≤0.7

≤0.8

Transmission insertion loss (DB)

≤0.45

≤0.45

Reflection insertion loss (DB)

≤0.3

Isolation degree

adjacent

>30

Non adjacent

>40

Insertion loss thermal stability (dB / ℃)

<0.005

Wavelength thermal stability (nm / ℃)

<0.002

Polarization dependent loss (DB)

<0.1

Polarization mode dispersion (DB)

<0.1

Directy

>50

Return loss

>45

Maximum optical power (MW)

300

Operating temperature (℃)

-20~+70

Storage temperature (℃)

-40~+85

Package size (mm)

Φ5.5xL35
