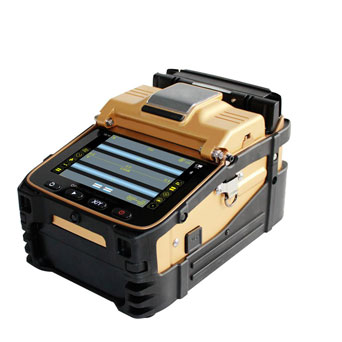

Ai-8C Fiber Fusion Splicer

Ai-8C Fiber Fusion Splicer

Signal Fire AI-8C uses the latest core alignment technology with autofocus and six motors, it is a new generation of a fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring, and other fiber cable splicing projects. The machine uses an industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machines in the market; with a 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; the toolbox is small, exquisite, durable, and with a unique bench design. The design of the operating platform reflects humanistic care; unique lighting design, it
Get Quote Now
Ai-8C Fiber Fusion Splicer

Basic Parameter of Ai-8C Fiber Fusion Splicer

Fiber Alignment

core/cladding alignment / manual alignment

Language

Setting

10 languages to switch freely


Splicing Time

6S

Tension Test

Standard 2N

Heating Time

15S

Fiber Holders

3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable

Heating Mode

Automatic heating (preheating)

Magnification

300 for X or Y view, 150 for X or Y view

Focus Mode

Six motors focus

Screen

5 inch TFT color display

Applicable Fibers

SM (G.652&G.657), MM (G.651), DS (G.657), NZDS (G.655)

Splicing Mode

Normal/high precision splicing

Splice Loss

0.025dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)

Splicing Method

Fully automatic、Step by step splicing

Control Technology

Real-time control and calibration of fusion ARC


Splicing Record storage

Synchronize to the phone, the server to

cloud storage unlimited

Return Loss

Better than 60DB


Built-in Battery

7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours,

continuous splicing and heating about 240 times

Fiber Diameter

Cladding Diameter: 80-150μm

Coating Diameter: 100-1000μm


Power Supply

Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current

power mode can be identified, real-time detection of battery power

Fiber Cleave Length

Coating less than 250µm: 8-16mm

Coating less than 250-1000µm: 16mm


Operating Conditions

Temperature -15 ~ +50 ℃, humidity:<95% RH (no condensation)

Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s

Software Update Length

Automatically update, Update by a key

Shrinkable Tube

60mm, 50mm, 40mm, 25mm

Boot-Time

1 second


Product Protection

Waterproof, dustproof, shock-resistant
