1310/1550 FBT WDM

1310/1550 FBT WDM

1310/1550 FBT Fused WDM provided by PHX features low loss, high-reliability wavelength split multiplexers (WDM) based on the technology of fused tapering, which can pass the reliability test standard of Telcordia GR1221. Wavelength-division multiplex couplers can provide common working wavelengths, such as 980/1550nm, 1480/1550nm, 1310/1550nm, etc., used in optical fiber amplifiers and in optical communication .
Get Quote Now

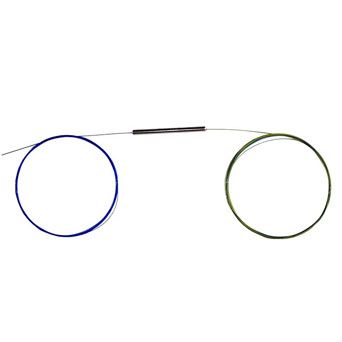

1310/1550 FBT WDM

Features of FBT WDM (1310/1550)

1. Low Insertin Loss

2. High Isolation

3. Compact Size

4. Top Quality-Price ratio


Applications of FBT WDM (1310/1550)

1. Long-HauIUni and Bi-Directional

2. Telecommunications System

3. Digital, Hybrid and Am-video Systems

4. High-Speed Multi-Wavelength Systems

5. CATV Links & Fiber Sensors


Performance Specifications of FBT WDM (1310/1550)

Parameter

WA

WB

WC

Grade

P

A

P

P

Insertion Loss (Max)(dB)

0.3

0.4

0.7

1.2

lsolation (Min.) (dB)

≥17

>16

>34

>45

PDL(dB)

≤0.05

<0.10

<0.10

<0.15

Operating Wavelength (nm)

1295 ~ 1325/1528 ~ 1565

Return Loss (Min.) (dB)

≥55

Directivity(dB)

≥55

Operating Temperature (℃)

-10~+70

Storage Temperature (℃)

-40~+85

Fiber Pigtail Length (m)

1 m or Custom Length

Fiber Type

Corning Singlemode SMF-28

Port Configuration

1x2 or 2x2

Package Dimension

F, G, H, 1, 4

1, 3

1



Package Dimensions & Pigtail Style of FBT WDM (1310/1550)

1310/1550 WDM Package Dimensions:

package F:

3mm x 54mm stainless steel tube

Package G:

3mm x 60mm stainless steel tube

Package H:

10mm x 20mm x 90mm case

Package 1:

18mm x 80mm x 120mm

Package 2:

10mm x 80mm x 100mm

Package 2:

3mm x 54(54~60)mm stainless steel tube

Pigtail Style

Package F:

250um bare fiber

Package G:

250um bare fiber or 900um loose tube

Package H,1,2:

2mm,3mm cable, or 900um loose tube

Package 3:

900um loose tube
