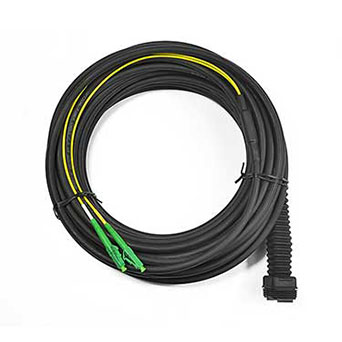

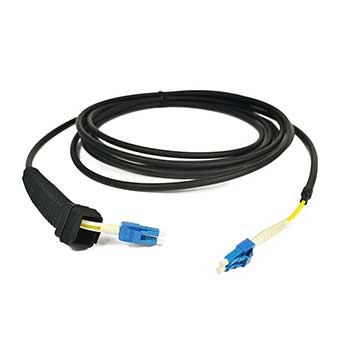

FULLX Outdoor Cable Assembly

FULLX Outdoor Cable Assembly

Open bulkhead for easy access to SFP. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof, and corrosion-resistant. The plug has a tolerance-free design, free-floating on Z-axis. The material in the jumper cable is all-weather and UV-resistant. Mechanical performance IEC 61754-20 standard. RoHS and REACH materials are compliant. 100% Compatible with FullAXS Connectors and has site technical features.
Get Quote Now
FULLX Outdoor Cable Assembly
FULLX Outdoor Cable Assembly

Parameters of FULLX Outdoor Cable Assembly

Item

Parameter

Single Mode

Multimode

Insertion Loss

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.15dB

Maximum≤0.30dB

Return Loss

≥60dB (APC)

≥50dB (UPC)

≥30dB (UPC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Connector Types of FULLX Outdoor Cable Assembly

Type

Reference

Note

LC

IEC 61754-20

Single mode duplex

APC: Green connectors , Green boots

UPC: Blue connectors , White boots

Multimode duplex

UPC: Grey connectors , White boots


Features

1. Open bulkhead for easy access to SFP.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. IP67 water, dust proof and corrosion resistant.

5. Plug has tolerance free design, free floating on Z-axis.

6. The material in the jumpel cable are all-weather and UV-resistan.

7. Mechanical performance: IEC 61754-20 standard.

8. RoHS and REACH materials compliant .

9. 100% Compatible with FullAXS Connectors and has site tehnical features.


Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.
