FBT WDM (MPO 980/1550,1480/1550)

FBT WDM (980/1550,1480/1550)

Get Quote Now

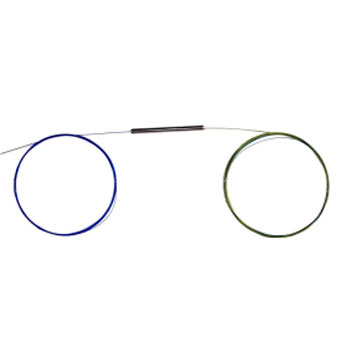

FBT WDM (980/1550,1480/1550)

Features of FBT WDM (MPO 980/1550,1480/1550)

1. Low Insertin Loss

2. High Isolation


Performance Specifications of FBT WDM (MPO 980/1550,1480/1550)

Type

980/1550nm WDM

1480/1550nm WDM

Grade

P

A

P

A

Max. Insertion Loss (dB)

0.20

0.25

0.25

1.35

lsolation(dB)

>20

>18

>16

>14

Polarization Sensitivity(dB)

<0.05

<0.10

<0.10

<0.15

Operating Wavelength (nm)

980±10/1550±20

1480/1550±5

Directivity(dB)

>60

Operating Temperature (℃)

-10~+70(-40 ~ +85 available upon request)

Storage Temperature (℃)

-40~+85

Fiber Pigtail Length (m)

1 m or custom length

Fiber Type

Corning HI 1060 or OFS980, Corning 980, Corning SMF-28e

Port Configuration

1x2 or 2x2

Package Dimension

F,G,H

Note: All values referenced are without connector.


Applications of FBT WDM (MPO 980/1550,1480/1550)

1. Erbium Doped Fiber

2. Amplifiers (EDFA)



Package Dimensions & Pigtail Style of FBT WDM (MPO 980/1550,1480/1550)

1310/1550 WDM Package Dimensions:

Package F:

3mm x 54mm stainless steel tube

Package G:

3mm x 60mm stainless steel tube

Package H:

10mm x 20mm x 90mm case

Pigtail Style:

Package F:

250um bare filber

Package G:

250um bare fiber or 900um loose tube

Package H:

2mm,3mm cable or 900um loose tube
