ABS Box PLC Splitter

ABS Box PLC Splitter

PHX ABS box PLC planar waveguide beam splitter can provide 1x2, 1x4 and 1x32 PLC splitter. The ABS box plc splitter adopts 2mm casing, with compact structure and high stability; SC / APC connector has uniform light distribution and is not sensitive to wave. This kind of fiber optic plc splitter is widely used in FTTH projects and data centers.
Get Quote Now
ABS Box PLC Splitter
ABS Box PLC Splitter
ABS Box PLC Splitter
ABS Box PLC Splitter

Characteristics of PLC Splitter ABC Box 1x2 1x4 1x32

1. Stable transmission performance

2. The optical signal is evenly distributed

3. ABS Box PLC splitter supports Plug and play

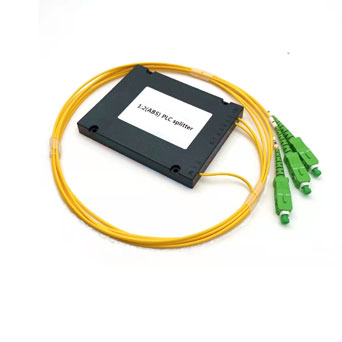

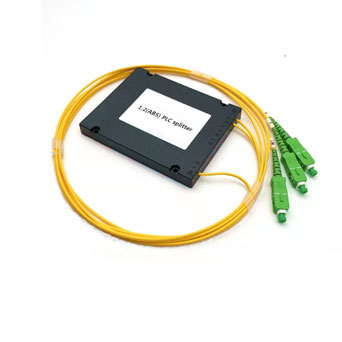

1x2 ABS box type single-mode PLC planar waveguide optical splitter 2.0mm, SC / APC

Package type

ABS Box

Port configuration

1X2

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

SC/APC

Spectral ratio

50/50

Fiber diameter

2.0mm

Fiber length

1.5M

IL

≤4.0dB

RL

≥55dB

UF

≤0.4dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃

Steel size(H x W x D)

10x100x80mm

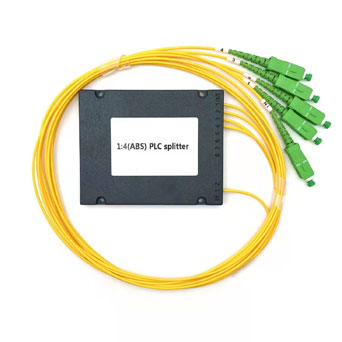

1x4 ABS box type single-mode PLC planar waveguide optical splitter 2.0mm, SC / APC

Package type

ABS Box

Port configuration

1X4

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

SC/APC

Spectral ratio

50/50

Fiber diameter

2.0mm

Fiber length

1.5M

IL

≤7.3dB

RL

≥55dB

UF

≤0.6dB

DIR

≥55dB

PDL

≤0.2dB

TDL

≤0.5dB

WDL

≤0.3dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃

Steel size(H x W x D)

10x100x80mm

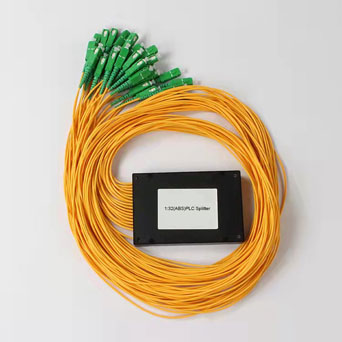

1x32 ABS box type single-mode PLC planar waveguide optical splitter 2.0mm, SC / APC

Package type

ABS Box

Port configuration

1X32

Fiber type

G.657A1

Optical fiber model

Single mode

Connector type

SC/APC

Spectral ratio

50/50

Fiber diameter

2.0mm

Fiber length

1.5M

IL

≤17dB

RL

≥55dB

UF

≤1.5dB

DIR

≥55dB

PDL

≤0.3dB

TDL

≤0.5dB

WDL

≤0.5dB

Working wavelength

1260~1650nm

Working temperature

-40~85℃

Storage temperature

-40~85℃

Steel size(H x W x D)

18x120x80mm
