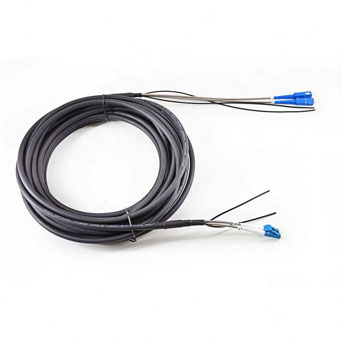

NSN Boot Dulex LC Fiber Optic Jumper

NSN Boot Dulex LC Fiber Optic Jumper

Easily add/install jumper cables for a future expansion. Low insertion loss and added loss. Height of attenuation. Flexibility with a small bending radius and excellent cable routing properties. End-face geometry and quality are superior to IEC and Telcordia standards. The material in the jumper cable is all-weather and UV-resistant. IP67 water and dust protection. Mechanical performance: IEC 61754-20 standard. RoHS and REACH materials are compliant.
Get Quote Now
NSN Boot Dulex LC Fiber Optic Jumper

Parameters of NSN Boot Dulex LC Fiber Optic Jumper

Item

Parameter

Single mode

Multimode

Insertion loss

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.15dB

Maximum≤0.30dB

Return loss

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Connector Types of NSN Boot Dulex LC Fiber Optic Jumper

Type

Reference

Note

LC

IEC 61754-20

Single mode duplex

APC: Green connectors

UPC: Blue connectors

Multimode duplex

UPC: Grey connectors


Features

1. Easily add/install jumper cables for a future expansion.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. Flexibility with small bending radius and excellent cable routing properties.

5. End-face geometry and quality superior than IEC and Telcordia standards.

6. The material in the jumpel cable are all-weather and UV-resistant.

7. IP67 water and dust protection.

8. Mechanical performance: IEC 61754-20 standard.

9. RoHS and REACH materials compliant.


Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.
