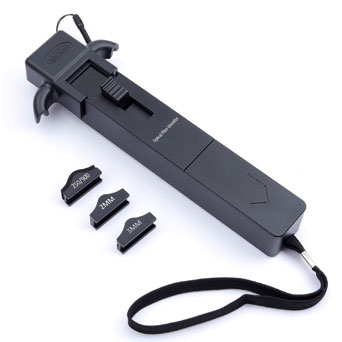

Optical Fiber Identifier & Visual Fault Locator

Optical Fiber Identifier & Visual Fault Locator

Optical fiber identification instrument with a red light source is a king optical fiber maintenance Necessary tools for lossless optical fiber identification work, as well the red light source can be used to test the light transmission of the optical fiber line in any position of the mode fiber is detected. During maintenance and installation When wiring, it is often necessary to look for it without interrupting the work And separate a specific fiber by putting 1310nm at one end Or 1550nm with modulation tone (270Hz,1kHz,2kHz)The signal is sent into the optical fiber and identified on the line with a recognizer To the effective direction.
Get Quote Now
Optical Fiber Identifier & Visual Fault Locator

Product List of Optical Fiber Identifier & Visual Fault Locator

Optical Fiber Identifier&Visual Fault Locator

1PCS

5 Batteries

1PCS

Nylon Hard Package

1PCS

Instructions

1PCS

Product Certificate

1PCS


Technical Parameter of Optical Fiber Identifier & Visual Faault Locator

Type

Parameter

Wavelength Range

800-1700nm

Signal Recognition Type

CW,270Hz±5%,1kHz±5%,2kHz±5%,

Detector Type

Ф 1mm InGaAs 2 pcs

Adaptive Fiber Type

General-purpose Ф 0.25(bare fiber),Ф 0.9,Ф 2.0,Ф 3.0 optical fiber jumper

Signal Direction

LED indicator light left and right direction indication

Optical Power Reading Range

-40dBm—+10dBm

Signal Frequency Range

270Hz,1kHz,2kHz

Red Light Test Wavelength

650nm±10nm

Red Light Output Power

>10mW

Alkaline Battery

2*AA 1.5V

Operating Temperature

-10~+60

Storage Temperature

-25~+70

Dimension(mm)

240X47X29

Weight(g)

180
