GJYWFJH Indoor/Outdoor Cable

GJYWFJH Indoor/Outdoor Cable

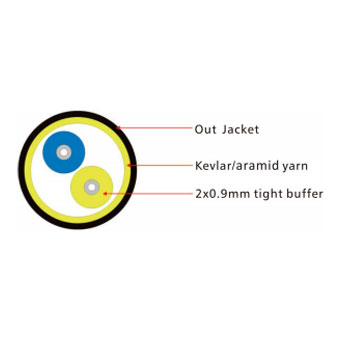

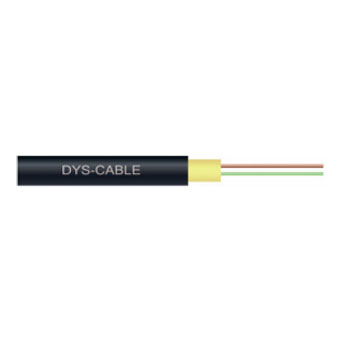

GJYWFJH Indoor/Outdoor Cable used as the optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket. (PVC, LSZH, TPU, PE or other materials according to customer's requirements).
Get Quote Now
GJYWFJH Indoor/Outdoor Cable
GJYWFJH Indoor/Outdoor Cable

Features of GJYWFJH Indoor/Outdoor Cable

• Good mechanical and temperature characteristics.

• Good lateral compression and flexibility.

• Small diameter, lightweight, easy to connect, and support large-capacity data transmission.

• Outer jacket material has the advantages of waterproof, flame retardant, and environmental protection.



Application of GJYWFJH Indoor/Outdoor Cable

• Remote base station communication such as RRU or BBU.

• Smart substation and CATV Outdoor application.

• Emergency access to optical fiber communication.

• Used in FTTX, from residence to the data centre and cabling level and vertical, also used in FTTH cable.


Technical parameters  of GJYWFJH Indoor/Outdoor Cable

Cable type

OD(mm)

Nominal

Weight

(kg/km)

Tensile Strength(N)

Bending Radius(mm)

Crush Resistance(N/100MM)

Short-term

Long-term

Dynamic

Static

Short-

term

Long-

term

GJYWFJH-2xn

4.8±0.2

28.3

600

300

20D

15D

1000

500

Storage/Working temperature(℃)

-20~+60

Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length of GJYWFJH Indoor/Outdoor Cable

• Standard wooden drum with protection.

• Standard reel length:2/3 km/reel, other length is also available.
