Mechanical 1X2 or 2X2 Optical Switch is an industry-proven fiber optic switch with excellent durability and reliability. It allows channel selection between a single input fiber and N output fibers. It is widely used in optical network fields such as OADM, OXC and OPM.
Get Quote Now
Mechanical Optical Switch

Features of Mechanical Optical Switch

1. Low Insert Loss

2. Low crosstalk

3. High repeatability and stability

4. Latching and non-latching

5. Meets GR-1209 and GR-1221 standards


Application of Mechanical Optical Switch

1. Fiber monitoring

2. OADM Fiber monitoring

3. Metropolitan area network

4. Optical network protection



Main Specifications of Mechanical Optical Switch

Parameters

Unit

Value

Wavelength

nm

850±40/1300±40/1260~1650

Insertion Loss(Max)

dB

1x1

1x2

2x2B

2x2F

D1X2

D2X2B

≤0.5

≤0.8

≤0.8

≤0.8

≤1.0

≤1.0

Return Loss

dB

MM≥35

SM≥50

Repeatability

dB

0.02dB Max

Crosstalk

dB

MM≥35

SM≥55

PDL

dB

--

≤ 0.05

WDL

dB

≤0.3@CWL±20nm,23℃

TDL

dB

<0.4dB

Parameters

-5~70

Operation Temperature

-40~85

Storage Temperature

ms

≤8

Switch Time

cycle

≥10^7

Durability

mW

≤500

Optical Power

V

3.3 or 5

Notes:

1. The above test loss (IL) is based on the test results at 23 ℃ at the central wavelength ± 20nm.

2. Repeatability is defined after 100 cycles.

3. Excluding connector, the insertion loss of connector is increased by 0.2dB.

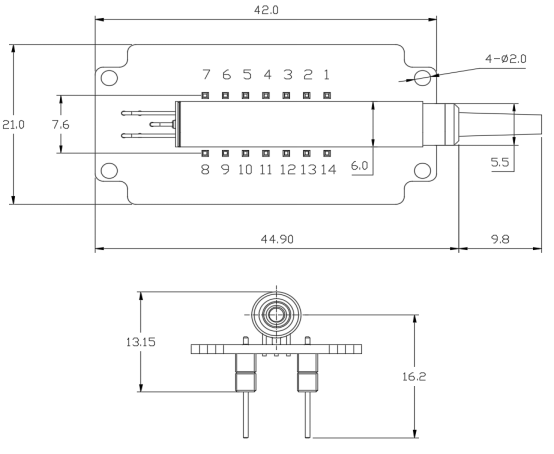

 Dimension (1X1/1x2 Mechanical Optical Switch) of Mechanical Optical Switch




(Units: mm)
