FTTH-006 Optical Fiber Panel

FTTH-006 Optical Fiber Panel

Support termination, splicing, and storage for fiber optic cable systems. Compact structure and perfect fiber management. Engineered fiber routing protects the bend radius through the unit to ensure signal integrity. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet. Working Temperature: -25℃~+60℃; Atmospheric.
Get Quote Now

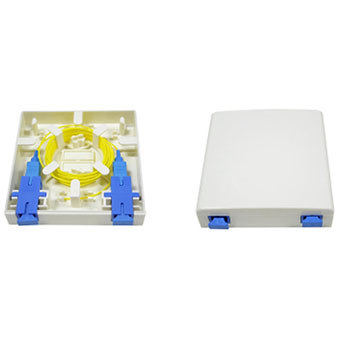

FTTH-006 Optical Fiber Panel

Specifications of FTTH-006 Optical Fiber Panel

Parameter

Value

Remark

Model

FTTH-006

1 PC

Outside Dimension (mm)

86*86*25

16 PCS

Material

ABS

8 PCS

Color

White

4 EST

Storage of Fibers

G.657

1 PC

Splice Capacity

2Fiber


Splice Method

Fusion Splice

45mm Sleeve

Adapter Type and Count

2 SC/SX or 2 LC/DX


Input Cable

3mm or Figure 8 (2*3mm)

From Side or Bottom


Application of FTTH-006 Optical Fiber Panel

  • The FTTH-006 is a desk mounted or wall mounted termination box for end user.

  • indoor use, capable to handle fiber fusion.

  • fiber cables and pigtails.


Features of FTTH-006 Optical Fiber Panel

  1. Support termination, splicing and storage for fiber optic cable systems.

  2. Compact structure and perfect fiber management.

  3. Engineered fiber routing protect bend radius through the unit to ensure signal integrity.

  4. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.

  5. Working Temperature: -25℃~+60℃; Atmospheric .

  6. Pressure:70kPa~106kPa;

  7. Relative Humidity: ≤ 85%(+30℃).

  8. Connector Repeatability: >1000.

  9. Connector Specification: IL: ≤0.2dB; RL: ≥50dB.
