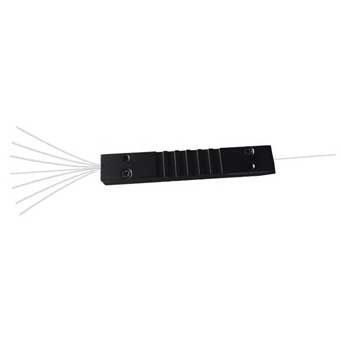

N×1 The multimode pump combiner of PHX is specially designed to be used in the field of high-power fiber lasers and fiber amplifiers to synthesize multiple multimode pump light into one fiber for transmission. High pump efficiency, low insertion loss, single arm bearing power up to 300W, stable and reliable performance. It is widely used in fiber laser, fiber amplifier, optical communication and so on.
Get Quote Now
Nx1 Pump Combiner

Features of Nx1 Pump Combiner


1. Low insertion loss

2. Fiber laser

3. Wide wavelength range / high withstand power

Parameters of Nx1 Pump Combiner

Parameter

Unit

Numerical value

Structure type


2x1

4x1

7x1

Pump wavelength range

nm

780-1000

Pump fiber type


105/125um NA0.12

105/125um NA0.22

105/125um NA0.22

Output fiber type


105/125um NA0.22

10/125µm,NA0.08/0.46

25/250µm,NA0.06/0.46

Pump efficiency (min)

%

90

95

95

Single arm input power

W

25

50

50

Fiber length

m

0.8 or Other

Package size

mm

P2:65x12x7、P3:80X12X8、P4:100X15X10

Operation temperature

0~+65

Storage temperature

-40~+85


The temperature measurement environment is 25 ℃; The package size selected by different power is different.


Type

Pump wavelength (nm)

Pump fiber

Output fiber

Pump efficiency (min)

Single arm power (max)

2x1

800-1000

105/125 0.12

105/125 0.22

93%

25W

2x1

800-1000

105/125 0.12

200/220 0.22

96%

50W

2x1

800-1000

105/125 0.12

X/125DC

95%

50W

2x1

800-1000

105/125 0.15

105/125 0.22

90%

50W

2x1

800-1000

105/125 0.15

200/220 0.22

95%

50W

2x1

800-1000

105/125 0.15

X/125DC

95%

50W

2x1

800-1000

105/125 0.22

200/220 0.22

95%

50W

2x1

800-1000

105/125 0.22

X/125DC

95%

50W

2x1

800-1000

200/220 0.22

X/125DC

95%

50W

2x1

800-1000

200/220 0.22

400/440 0.22

95%

50W

3X1

800-1000

105/125 0.12

105/125 0.22

85%

10W

3X1

800-1000

105/125 0.12

200/220 0.22

95%

50W

3X1

800-1000

105/125 0.12

X/125DC

95%

50W

3X1

800-1000

105/125 0.15

200/220 0.22

95%

50W

3X1

800-1000

105/125 0.15

X/125DC

95%

50W

3X1

800-1000

105/125 0.22

200/220 0.22

95%

100W

3X1

800-1000

105/125 0.22

X/125DC

95%

50W

4x1

800-1000

105/125 0.12

200/220 0.22

95%

50W

4x1

800-1000

105/125 0.12

X/125DC

95%

50W

4x1

800-1000

105/125 0.15

200/220 0.22

95%

50W

4x1

800-1000

105/125 0.22

125 0.46

95%

100W

4x1

800-1000

105/125 0.15

X/125DC

95%

50W

4x1

800-1000

105/125 0.22

200/220 0.22

93%

50W

4x1

800-1000

105/125 0.22

220/242 0.22

95%

100W

4x1

800-1000

105/125 0.22

X/125DC

95%

50W

4x1

800-1000

200/220 0.22

X/125DC

95%

50W

4x1

800-1000

200/220 0.22

400/440 0.22

90%

50W

7x1

800-1000

105/125 0.12

200/220 0.22

93%

50W

7x1

800-1000

105/125 0.12

X/125DC

95%

50W

7x1

800-1000

105/125 0.15

200/220 0.22

90%

50W

7x1

800-1000

105/125 0.15

X/125DC

93%

80W

7x1

800-1000

105/125 0.22

X/125DC

93%

80W

7x1

800-1000

105/125 0.22

125 0.46

95%

100W

7x1

800-1000

105/125 0.22

220/242 0.22

96%

200W

7x1

800-1000

105/125 0.22

X/250DC

96%

100W

7x1

800-1000

105/125 0.22

400/440 0.22

96%

100W

7x1

800-1000

200/220 0.22

X/400DC

96%

200W

7x1

800-1000

220/242 0.22

X/400DC

96%

300W
