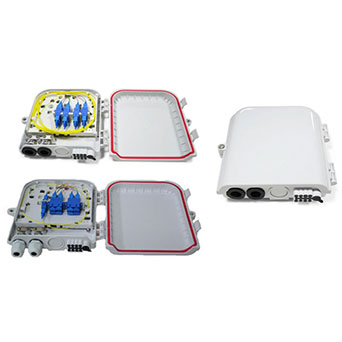

FTTH-004 Optical Fiber Terminal Box

FTTH-004 Optical Fiber Terminal Box

Industry Standard User Interface, be made of high-impact plastic. Can accommodate 1x4 & 1X8 PLC splitter. Anti-UV, Ultra violet resistant, and rainfall resistant. Up to 8 FTTH drops. Wall and pole mountable. 2 inlet ports, 8 outlet ports. Special cable fixed position, ensure the cable fixed pulled off the force after not less than 50 N.
Get Quote Now
FTTH-004 Optical Fiber Terminal Box

Product Configuration List of FTTH-004 Optical Fiber Terminal Box

Product Name

Specifications

Quantity

Box

FTTH-004

1 PC

Optical Fiber Heat Shrinkable Casing

Ф1.5×40mm

8 PCS

To Protect The Casing

Φ5

1.5 M

Nylon Cable Tie

3×100mm

6 PCS

Expansion Bolt

M8×40mm

4 EST

Key


1 PC


Mechanical Data of FTTH-004 Optical Fiber Terminal Box

Model

Capacity

Size

FTTH-004

8 Port

200mm (W)x215mm (H)x54mm (D)


Application of FTTH-004 Optical Fiber Terminal Box

  1. widely used in FTTH access network.

  2. Telecommunication Networks.

  3. CATV Networks.

  4. Data communications Networks.

  5. Local Area Networks.


Features of FTTH-004 Optical Fiber Terminal Box

  1. Industry Standard User Interface, be made of high impact plastic.

  2. Can accommodate 1x4 & 1X8 PLC splitter.

  3. Anti-UV, Ultra violet resistant and rainfall resistant.

  4. Up to 8 FTTH drops.

  5. Wall and pole mountable.

  6. 2 inlet ports, 8 outlet ports.

  7. Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

  8. Job stress: 70 kpa to 108 kpa.

  9. Using the temperature:- 40 ~ + 60 ℃ .

  10. Relative humidity: ≤95% (+ 40 ℃).

  11. Protection grade: IP55.
