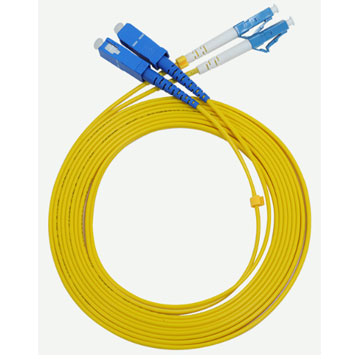

LC-SC Armored Duplex Patch Cables

LC-SC Armored Duplex Patch Cables

The armored patch cables will allow you to protect your critical and essential fiber optic network with a crush-resistant and rodent-resistant jacket. The cable is a perfect solution for installing th...
Get Quote Now
LC-SC Armored Duplex Patch Cables

Features of LC-SC Armored Duplex Patch Cables

  1. High quality zirconia ferrules.

  2. Good repeatability and interchangeability.

  3. OS2/OM4/OM3/OM2/OM1 are available..

  4. LC/SC/ST/FC connectors are available.

  5. Perfect solution for installs that require extra protection.

  6. Factory terminated and tested for insertion loss, return loss and end face.


Standards Compliance of LC-SC Armored Duplex Patch Cables

  • ISO9001 Compliant

  • RoHS Compliant

Specification of LC-SC Armored Duplex Patch Cables

Physical Characteristics

Description

Fiber Count

Duplex

Fiber Mode

OS2/OM4/OM3/OM2/OM1

Fiber Grade

OS2: G.657.A1

OM4/OM3/OM2/OM1

Connector A

LC

Connector B

SC

Polish Type

SMF: UPC/APC

MMF: UPC

Cable Jacket

PVC /LSZH

Jacket Color

OS2: Blue or custom

OM4/OM3: Aqua; OM2/OM1: Gray

Cable Diameter

2.0mm

Core Size

9/125μm

Clad Size

125μm

Patch cable length

1M,3M or custom


Optical Characteristics

Description

Wavelength

1310nm

Insertion Loss

≤0.3 dB

Return Loss

SMF: UPC≥50dB, APC≥60dB

MMF: UPC≥30dB

Tensile Loads

120N (Long Term)/225N (Short Term)

Operating Temperature

-25~70°C

Storage Temperature

-25~70°C

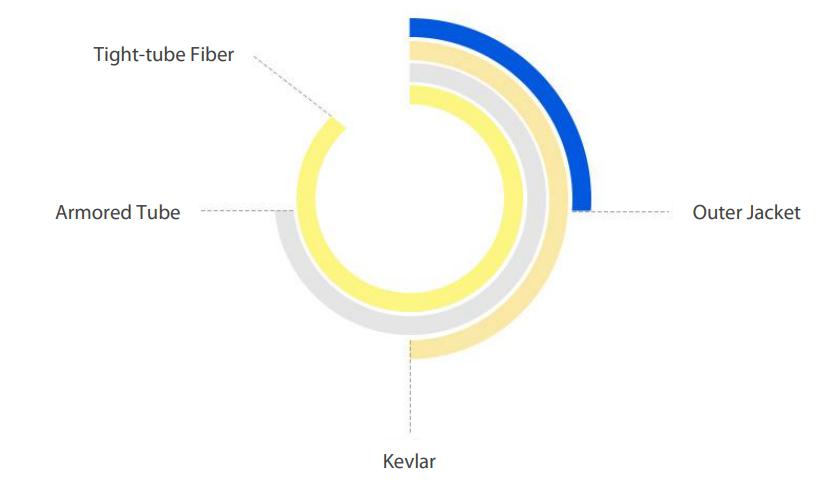

Cable Structure

Armored fiber patch cables feature a specialized jacketing that increases the durability of fiber cables. In addition, the stainlesssteeltube allow optical fiber to be installed in the indoor harsh environments where a traditional fiber optic patch cable mayfail, sushasenvironments with excessive dust, or even damage-causing rodents etc


Cable Structure


Cable Structure


* The cable structure is shown in the figure above, and other colors can be used according to the customized requirements.
