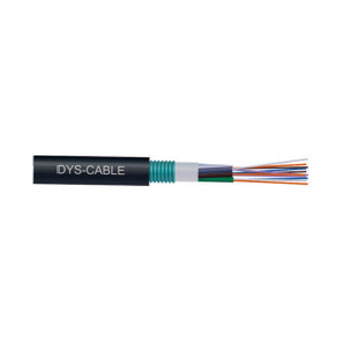

GYTS Outdoor Cable

GYTS Outdoor Cable

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
Get Quote Now
GYTS Outdoor Cable
GYTS Outdoor Cable

Features of GYTS Outdoor Cable

• Up to 144 fiber cores.

• The loose tube stranding technology make the fibers have good secondary excess length.

• Metal strength member provides excellent strain performance.

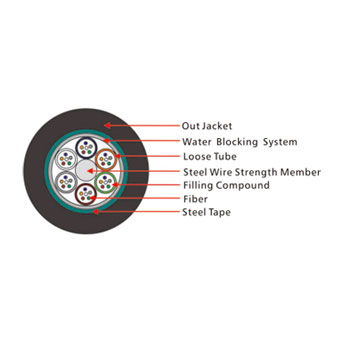

• Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.

• The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.



Application of GYTS Outdoor Cable

• Stallation in aerial or duct environment for long haul communication.

• LAN, especially suitable for the situation of high requirements to lateral pressure resistance.

Technical parameters of GYTS Outdoor Cable

Cable type

OD(mm)

Nominal

Weight

(kg/km)

Tensile Strength(N)

Bending Radius(mm)

Crush Resistance(N/100MM)

Short-term

Long-term

Dynamic

Static

Short-

term

Long-

term

GYTS-2~60xn

10.5±0.5

88.0

1500

600

20D

15D

1000

300

GYTS-62~72xn

11.5±0.5

102.0

1500

600

20D

15D

1000

300

GYTS-74~96xn

13.0±0.5

130.0

1500

600

20D

15D

1000

300

GYTS-98~144xn

15.8±0.5

156.0

1500

600

20D

15D

1000

300

Storage/Working temperature(℃)

-20~+60

Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length of GYTS Outdoor Cable

• Standard wooden drum with protection.

• Standard reel length:2/3 km/reel, other length is also available
