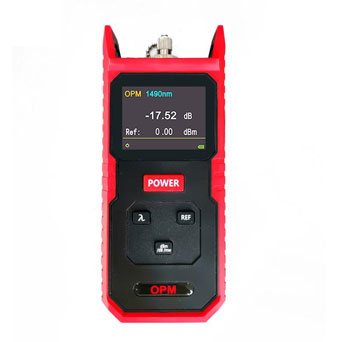

TWH-G2020 Optical Power Meter

TWH-G2020 Optical Power Meter

TWH-G2020 Series Optical Power Meter is a kind of OPM that can measure six different wavelengths. It is suitable for acceptance of optical cable engineering, maintenance and inspection of optical fiber network. Handheld design, light weight, small size, long standby time, simple operation.
Get Quote Now
TWH-G2020 Optical Power Meter

Technical Parameter of TWH-G2020 Optical Power Meter

Model

TWH-G2010

TWH-G2026

Wavelength Range (nm)

800~1700

Probe Type

InGaAs

Detection Range

ф0.3mm

Optical Port

2.5mm universal connector + FC or SC

Power Measurement Range (dBm)

-70~+8

-50~+26

Uncertainty

±5%

Standard Wavelength (nm)

850, 1300, 1310, 1490, 1550, 1625

Display Resolution

0.01dBm

Working Temperature (℃)

-10~+60

Storage Temperature (℃)

-25~+70

Automatic Shutdown Time (min)

10

Power Supply

3 AA batteries (optional rechargeable battery)

Battery Continuous Working Time (h)

25 (3x1500mAh)

Dimensions (mm)

76 * 177.5*40

Power Supply

5V2A

Weight (KG)

0.275
