Shenzhen Puhuixin Tecnhnology Co., Ltd.

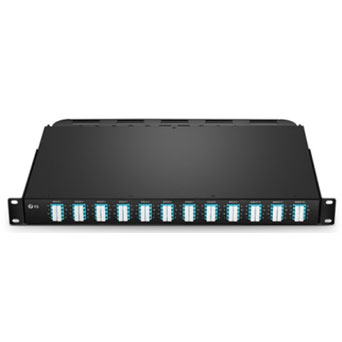

Fhu 1U 96F Branch Distribution Box

Fhu 1U 96F Branch Distribution Box

PHX 96-core MTP®-LC branch distribution box, the front panel provides 48 duplex LC interface, rear panel provides 12 MTP® (8-core) interface, There are 12 pairs of MTP® (8-core) -LC fiber branch jumpers pre-terminated internally, so 40G can be achieved by LC duplex fiber jumpers and MTP® (8-core) fiber jumpers. The connection between network devices and 10G network devices. The advantages of this box structure are space-saving, easy management, flexibility, and the ability to protect fiber optic jumpers from external mechanical damage.
Get Quote Now
Fhu 1U 96F Branch Distribution Box

Specification of Fhu 1U 96F Branch Distribution Box

Model Name

FHU-96FLC12MSMF

Number of Cores

96

Type of Front Panel Adapter

48 * LC duplex

Type of Rear Panel Adapter

12* 8-core MTP® male (with guide pin)

Insertion Loss

MTP≤0.35dB, LC≤0.2dB

Return Loss

MTP®≥60dB, LC≥50dB

Size (HxWxD)

44x482x261.2mm

Optical Fiber Type

 OS2 9/125μm

/ OM4 50/125µm

Working Yemperature

-20℃~+60℃

Storage Temperature

-40℃~+70℃
