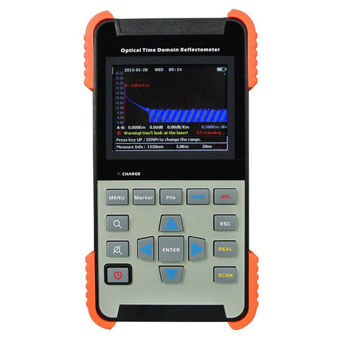

OTDR-AOR500

OTDR-AOR500

Convenient one-button testing. High-speed signal processing, less test time, and fast analysis. Color TFT LCD. USB port connects to PC. Input optical signal auto-detection and self-protection. Built-in VFL.
Get Quote Now
OTDR-AOR500

Specification of OTDR-AOR500


AOR500-S

AOR500-A

AOR500-B

Wavelength

1310±20nm / 1550±20nm

Dynamic Range

24/22dB

28dB / 26dB

32dB / 30dB

Event Dead Zone

< 1.5m

Attenuation Dead Zone

< 8.0m

Pulse Width

10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1000ns,2500ns,5000ns, 10000ns

Distance Uncertainty

±(1.0m ± 0.005% * testing distance ± resolution)

Linearity

±0.05dB/ dB

Loss Resolution

0.001dB

Distance Resolution

1m

Connector

FC (optional: SC, ST, LC)

VFL

1mW

Data Storage

> 10000 traces (standard 1GB SD card)

Display

3.5 inch TFT color LCD

Interface

USB

Battery

Built-in rechargeable battery

Working Time

>10 hrs (Bellcore TR-NWT-001138)

Operating Temp

-10 -- +50 ℃, < 90%RH

Storage Temp

-20 -- +60 ℃, < 90%RH

Net Weight

0.9 Kg

Dimension

230mm×120mm×60mm



Accessories of OTDR-AOR500

AC/DC Adapter

1

Operation Guide

1

Carrying Bag

1

USB Cable

1

Calibration Certificate

1

SC Interchangeable Connector

optional

ST Interchangeable Connector

optional

LC Interchangeable Connector

optional
