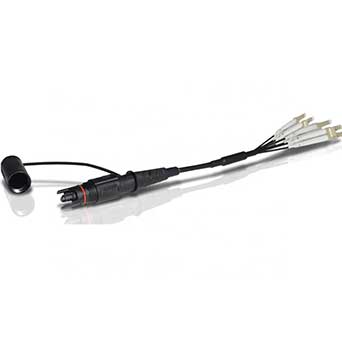

Mini IP LC

Mini IP LC

Cost-effective solution for in-house termination. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof and corrosion-resistant. The material in the jumper cable is all-weather and UV-resistant.
Get Quote Now

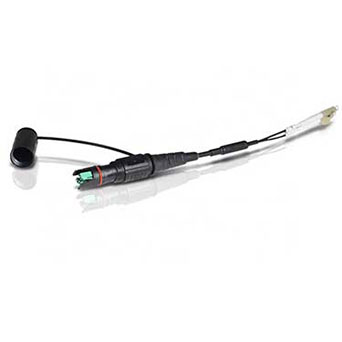

Mini IP LC
Mini IP LC

Parameters of Mini IP(LC)

Item

Parameter

Single Mode

Multimode

Standard

Elite

Standard

Elite

Insertion Loss

Typical≤0.30dB

Max≤0.75dB

Typical≤0.15dB

Max≤0.35dB

Typical≤0.50dB

Max≤0.25dB

Typical≤0.10dB

Max≤0.35dB

Return Loss

≥50dB (PC)

≥60dB (APC)

≥55dB (PC)

≥65dB (APC)

≥30dB (PC)

≥30dB (PC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Connector Types of Mini IP(LC)


Type

Reference

Note

LC

IEC 61754-20

Single-mode duplex

APC: Green connectors

UPC: Blue connectors

Multimode duplex

UPC: Grey connectors

SC

IEC 61754-4

Single-mode duplex

APC: Green connectors

UPC: Blue connectors

Multimode duplex

UPC: Grey connectors

MPO

IEC 61754-7

Single-mode

APC: Black connectors

APC: Black connectors

Multimode

PC: Black connectors

MPT

IEC 61754-7

Single-mode

APC: Black connectors

APC: Black connectors

Multimode

PC: Black connectors



Product Parameters (MiniIP(SC) and MiniIP(MPO))


Item

Parameter

Single mode

Multimode

Standard

Elite

Standard

Elite

Insertion loss

Typical≤0.30dB

Max≤0.75dB

Typical≤0.15dB

Max≤0.35dB

Typical≤0.50dB

Max≤0.25dB

Typical≤0.10dB

Max≤0.35dB

Return loss

≥50dB(PC)

≥60dB(APC)

≥55dB(PC)

≥65dB(APC)

≥30dB(PC)

≥30dB(PC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃



Features

1. Cost effective solution for in house termination.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. IP67 water, dust proof and corrosion resistant.

5. The material in the jumpel cable are all-weather and UV-resistant.

6. MiniIP(LC), Mechanical performance: IEC 61754-20.

7. MiniIP(SC), Mechanical performance: IEC 61754-4 standard.

8. MiniIP(MPO), Mechanical performance: IEC 61754-7 standard.

9. RoHS and REACH materials compliant.


Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.
