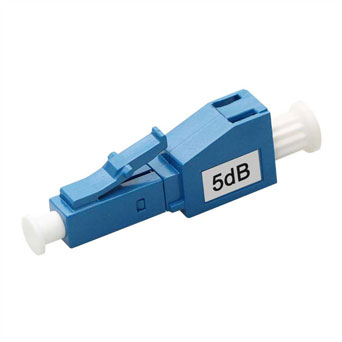

LC Attenuator

LC Attenuator

Applied to LC-UPC optical interface, made with modular jack (RJ) latch mechanism for easy operation, commonly used for router connection.
Get Quote Now
LC Attenuator

Specification of LC UPC Optical Attenuator

Fiber Connector

LC/UPC

Ferrule Type

Zirconia Ceramic

Connector Gender

Fixed Male to Female

Transfer Mode

Singlemode

Attenuation

1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB

Operating Wavelength (nm)

1260~1620 (SM)

Attenuation Accuracy

±0.5dB

Return Loss

≥50dB

Polarization Dependent Loss

≤0.2dB

Humidity

95%RH

Operating Temperature Range

-40~85°C

Storage Temperature Range

-40~85°C


Specification of LC APC Optical Attenuator

Fiber Connector

LC/APC

Ferrule Type

Zirconia Ceramic

Connector Gender

Fixed Male to Female

Transfer Mode

Singlemode

Attenuation

1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB

Operating Wavelength(nm)

1260~1620(SM)

Attenuation Accuracy

±0.5dB

Return Loss

≥60dB

Polarization Dependent Loss

≤0.2dB

Humidity

95%RH

Operating Temperature Range

-40~85°C

Storage Temperature Range

-40~85°C


Optical technology in Autonomous Vehicles
Autonomous Vehicles
Optical Fiber Used in Optical Communication System
Optical Communication Systems
Optical Fiber Used In Local Area Networks
Local Area Networks
Optical Fiber Used In CATV Systems
CATV Systems

Related Optical Fiber Attenuator
