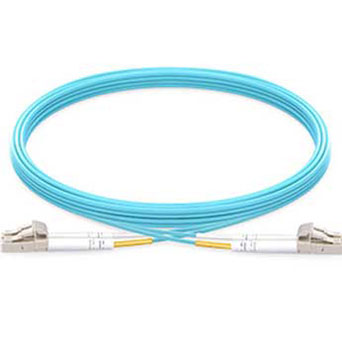

Multi Mode Fiber Optic Patch Cord

Multi Mode Fiber Optic Patch Cord

PHXFIBER Optical Fiber Patch Cords include LC, FC, SC, ST, MU, MPO/MTP, MTRJ, SMA, E2000 and so on. They are mainly used in fiber optical communication systems, such as CATV, LAN, telecommunications networks, Gigabit applications, ATM Ethernet and other fiber optical instruments or optical measurement systems. The non-standard product can be customized. ​
Get Quote Now
Multi Mode Fiber Optic Patch Cord

Specifications

Parameter


Operating wavelength (nm)

850/1310

Fiber type

50/125 or 62.5/125

Grade

P

A

Insertion loss (dB)

≤0.2

≤0.3

Return loss (dB)

≥40

≥35

Repeatability (dB)

≤0.1

Changeability (dB)

≤0.2

Durability

≥1000

Operating temperature

(℃)

-40 ~ + 85

*The above specification is without connector.

**Other specifications can be made on customer request.


Ordering Information

POL

XX

XX

X

XX

XX/XX


Operating Wavelength

Fiber Type

Fiber Jacket

Fiber Length

Connector


98=980

SM

B=250um

Fiber Length

LCUPC


03=1030

MM

L=900um

10=1m



55=1550

PM

S=specify

15=1.5m



20=2m





SS=specify
