FTTH-016 Optical Fiber Panel

FTTH-016 Optical Fiber Panel

Support termination, splicing, and storage for fiber optic cable systems. Suitable for two adapters SC or two adapters LC configuration. Compatible with G.657A1. Compact structure and perfect fiber management. Engineered fiber routing protects the bend radius through the unit to ensure signal integrity. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
Get Quote Now

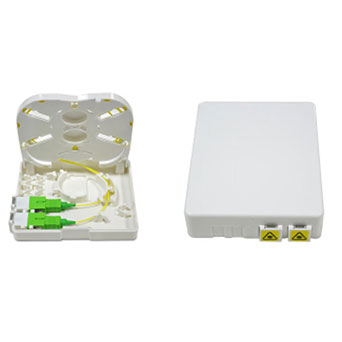

FTTH-016 Optical Fiber Panel

Specifications of FTTH-016 Optical Fiber Panel

Parameter

Value

Remark

Model

FTTH-016


Outside Dimension (mm)

80*100*23


Material

ABS


Color

White


Storage of Fibers

G.657


Splice Capacity

2Fiber


Splice Method

Fusion Splice

1.0*40mm Sleeve

Adapter Type and Count

2 SC/SX or 2 LC/DX


Input Cable

3mm or Figure 8 (2*3mm)

From Side or Bottom



Application of FTTH-016 Optical Fiber Panel

The FTTH-16 is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.


Features of FTTH-016 Optical Fiber Panel

  1. Support termination, splicing and storage for fiber optic cable systems.

  2. Suitable for two adapters SC or two adapters LC configuration.

  3. Compatible with G.657A1.

  4. Compact structure and perfect fiber management .

  5. Engineered fiber routing protect bend radius through the unit to ensure signal integrity.

  6. Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
