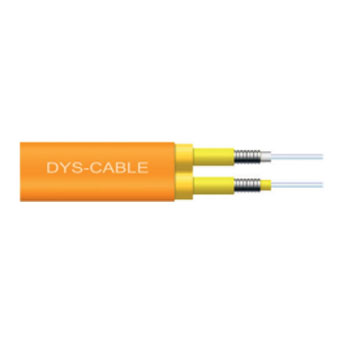

GJSJBV Duplex Armoured Flat Cable

GJSJBV Duplex Armoured Flat Cable

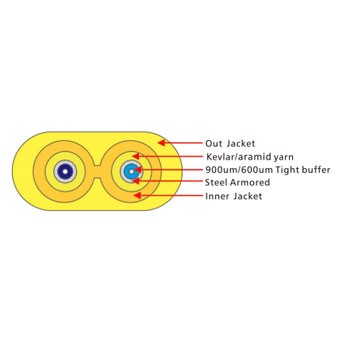

GJSJBV Duplex Armoured Flat Cable use 600um & 900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (Kevlar/aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.
Get Quote Now
GJSJBV Duplex Armoured Flat Cable
GJSJBV Duplex Armoured Flat Cable

Features of GJSJBV Duplex Armoured Flat Cable

• Two single-fiber as basic unit, flast twin configuration.

• Single -cable with 0.6mm or 0.9mm tight buffer.

• Kevlar yarn steel armored flexible or out sheath independent strength member.

• Excellent mechanical and enviromental performance.



Application of GJSJBV Duplex Armoured Flat Cable

• Adopted to indoor distribution.

• As pigtail of communication equipment.Suitable for communication equipment served.

• Can be installed conveniently and perated simply.

Technical parameters of GJSJBV Duplex Armoured Flat Cable

Cable type

OD(mm)

Nominal

Weight

(kg/km)

Tensile Strength(N)

Bending Radius(mm)

Crush Resistance(N/100MM)

Short-term

Long-term

Dynamic

Static

Short-

term

Long-

term

GJFJBV-2xn

GJSJBV-2xn

(3.0±0.2)*(5.4±0.2)

35.5

1000

300

20D

15D

2000

GJFJBV-2xn

GJSJBV-2xn

(3.8±0.2)*(7.0±0.2)

38.5

1000

300

20D

15D

2000

Storage/Working temperature(℃)

-20~+60

Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length of GJSJBV Duplex Armoured Flat Cable

• Standard wooden drum with protection.

• Standard reel length:2/3 km/reel, other length is also available.
