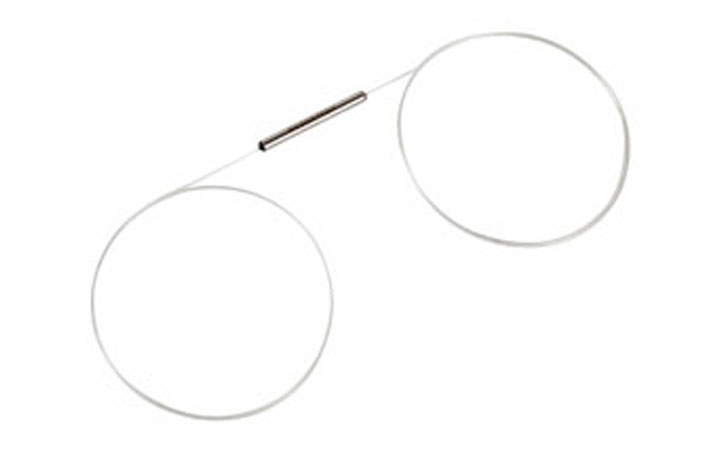

FBT Splitter Coupler

FBT Splitter Coupler

The fused biconical (FBT) optical splitter uses the traditional fused biconical process to disturb two (or more) coated optical fibers in a certain way, melt under high temperature heating, stretch to both sides at the same time, and finally form a special waveguide structure in the form of double cone in the heating zone. By controlling the torsion angle and stretching length of the optical fiber, Different spectral ratios can be obtained. With over 20 years of experience, fbt splitter manufacturers have honed their expertise in the production of  ftth fbt fiber optic splitter, which underscores the maturity of their production processes, ensuring exceptional quality and reliability in every splitter manufactured. Because its raw materials are quartz substrate, optical fiber, heat shrinkable tube and stainless steel tube, it is widely used in various passive optical networks, especially in applications with small shunt scale (such as 1:2, 1:4, etc.)

Buy FBT Splitter Coupler
FBT Splitter Coupler
Features of FBT Splitter, Coupler

Features of FBT Splitter, Coupler

Low insertion loss, low polarization dependent loss
Various Split Ratio: 1/99,2/98, 10/90,50/50
Compact packing size, as small as 2.4*25mm
High power: 1W, 2W, 3W, 5W(37dbm), 10W(40dbm)
Excellent Environmental & Mechanical Stability and Reliability
Comply with Telcordia 1209/1221and RoHS

Advantages of FBT Splitter, Coupler

The splitting ratio can be monitored in real-time according to needs, and an unequal ftth fbt fiber optic splitter can be made.
Raw materials of FBT coupler can get easily such as quartz substrate, optical fiber, heat shrinkable tubes, stainless steel tubes, and less glue.
The craft of FBT splitters is matured, and the cost is lower, the craft is lasting for more than 20 years.

Fiber Optic Solutions We Serve

PHX FIBER products are widely applied in fiber optical communication systems, fiber optic sensors, CATV, fiber lasers and other fiber optical instruments, etc.
Optical sensing is the key technology of self-driving because a self-driving car relies on a sensor system to perceive and navigate its surrounding environment accurately to ensure safety.
Optical technology in Autonomous Vehicles
Application of fiber optic passive components enable the engineering implementation of full fiber network to realize, and improve the performance of optical communication system.
Optical Fiber Used in Optical Communication System
Passive Optical LAN is of higher Efficiency, Security and energy conservation, but lower cost.
Optical Fiber Used In Local Area Networks
Connection, distribution, isolation and filtration of optical fiber passive components play important parts in CATV system.
Optical Fiber Used In CATV Systems
