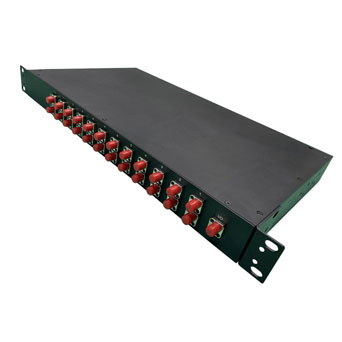

1XN(2≤N≤128) Rack Type Optical Switch

1XN(2≤N≤128) Rack Type Optical Switch

Rack Type 1xN Optical Switch of is an optical switch based on MEMS (Micro Electromechanical System) technology, which allows channel selection between single input light and N output lights. It has the characteristics of compact size, excellent durability and stable reliability. It is widely used in optical network fields such as OADM, OXC, OPM and so on.
Get Quote Now
1XN(2≤N≤128) Rack Type Optical Switch

Features of 1XN(2≤N≤128) Rack Type Optical Switch

1. LCD display can be chosen

2. 1~128channels and other customized channels according to customer requirements.

3. Meets GR-1209 and GR-1221 standards



Applications of 1XN(2≤N≤128) Rack Type Optical Switch

1. Fiber monitoring

2. Data center

3. Fiber sensing


Main Specifications of 1XN(2≤N≤128) Rack Type Optical Switch

Parameters

Unit

Value

Wavelength

nm

1260~1660

Test Wavelength

nm

1310、1550

Insertion Loss(Max)

dB

≤1.0db

Repeatability

dB

≤±0.05

Return Loss

dB

≥50

Parameters

Unit

Value

Crosstalk

dB

≥55

WDL

dB

≤0.25

PDL

dB

≤0.05

OperationTemperature

-5~70

Storage Temperature

-40~85

Monitoring port


RJ45、RS-232

Power supply

V

AC: 85 ~ 264 V(50/60Hz)

Note: 1. The above test loss (IL) is based on the test results at 23 ℃ at the central wavelength ± 20nm;

2. Repeatability is defined after 100 cycles.

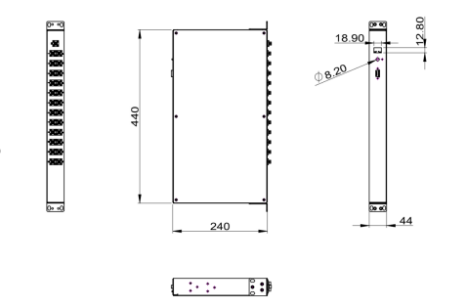

Dimension (Rack Type Optical Switch) of 1XN(2≤N≤128) Rack Type Optical Switch



Optical Path Chart of 1XN(2≤N≤128) Rack Type Optical Switch

The I/O port on the 1xN frame optical switch device panel is a public port, 1, 2, 3, ... and N are respectively channels.


Order Information of 1XN(2≤N≤128) Rack Type Optical Switch

OE-J1-1×N-MM-A-B-C-D-E (MS: MEMS Optical Switch)

N

A

B

C

D

E

Optical path

Fiber type

Package

Type

Test

Wavelength

Power

Connector

2:2

4:4

8:8

12:12

16:16

24:24

32:32

48:48

64:64

128:128


SM: SM,9/125

OM1:OM1,

(50/125)

OM2:=OM2,

(62.5/125)

OM3:OM3,

(50/125)

X: Others

1U:1U19''

808:808nm

850:850nm

1300:1300nm


24V

X: Others

FP: FC/PC

FA: FC/APC

SP: SC/APC

LP: LC/PC

LA: LC/APC

Note:1. The above specifications just show the typical performance of Module;

2. Please contact our sales to discuss your specific requirements.
