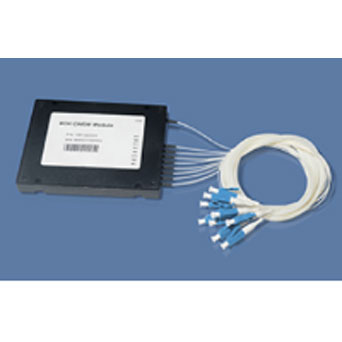

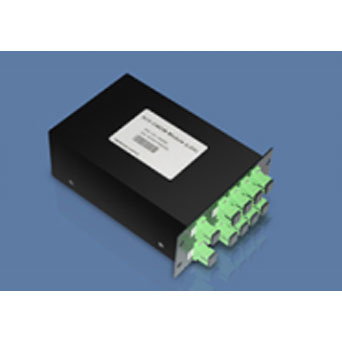

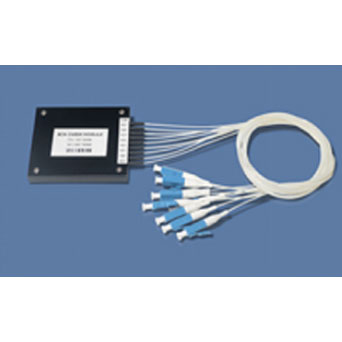

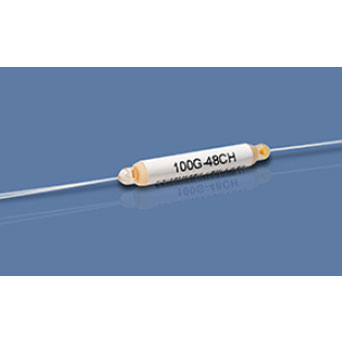

Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules

Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules

DWDM modules are based on Thin-Film Technology and All-Glass Packaged platform, keeping the device in compact size and excellent performance. Excellent device qualification test ensure the long term performance of module products in field applications.
Get Quote Now
Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules
Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules
Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules

Application of Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules

1. WDM Channels Add/Drop Systems.

2. WDM Networks & Systems.

3. CATV Fiber Optical Links.

4. Long Haul & Short-Distance Applications.

5. Accessing LAN & WAN Network.


Features of Mini DWDM Modules/ Cassette DWDM Modules/DWDM Modules

1. Low Insertion Loss.

2. Excellent Channel Isolation.

3 High Channel Isolation.

4. High Stability and reliability.

5. Epoxy-free on Optical Path.

6. Low Cos.

Product Parameters(Mini DWDM Modules)

Parameters

Unit

Specifications

Operating Wavelength Range

nm

1260~1620

1520~1570

Channel Spacing

--

20nm

100GHz

Channel Passband(@-0.5dBbandwidth)

nm

IUT±6.5

UT±0.125

Channel Quantity

--

C4CH

C8CH

C4CH

C8CH

Max. Pass Band Ripple

dB

<0.35

<0.4

Max. Channel Insertion Loss

dB

<1.5

<2.5

<1.5

<2.5

Min. Adjacent Channel Isolation

dB

>30

>30

Min. Non-Adjacent Channel Isolation

dB

>45

>45

Min. Return Loss

dB

≥45

Max. PDL

dB

<0.10

<0.10

<0.20

<0.30

Insertion Loss Temperature Sensitivity

dB/℃

<0.005

Wavelengt Temperature Shifting

nm/℃

<0.002

Max. Power Handling

mW

300

Directivity

dB

≥50

Operation Temperature Range

-40 to +80

Storage Temperature Range

-40 to +80

Fiber Jacket & Fiber Length

cm

Customize

Package Dimensions- 1

mm

100*80*10 or Customize

Package Dimensions- 2

mm

LGX Compatible

Package Dimensions- 3

mm

19”IU Rack Mounted

Connector Type

--

SC/LC/FC or Customize

Fiber Type and Jacker Color


G.652D/G.657A1(Customized)


Product Parameters(Cassette DWDM Modules and DWDM Modules)

Parameters

Unit

Specifications

Operating Wavelength Range

nm

1260~1620

1520~1570

Channel Spacing

--

20nm

100GHz

Channel Passband(@-0.5dBbandwidth)

nm

IUT±6.5

UT±0.11

Channel Quantity

--

C4CH

C8CH

C4CH

C8CH

Max. Pass Band Ripple

dB

<0.35

<0.4

Max. Channel Insertion Loss

dB

<1.8

<3.0

<2.0

<3.2

Min. Adjacent Channel Isolation

dB

>30

>25

Min. Non-Adjacent Channel Isolation

dB

>45

>35

Min. Return Loss

dB

≥45

Max. PDL

dB

<0.10

<0.10

<0.20

<0.30

Insertion Loss Temperature Sensitivity

dB/℃

<0.005

Wavelengt Temperature Shifting

nm/℃

<0.002

Max. Power Handling

mW

300

Directivity

dB

≥50

Operation Temperature Range

-40 to +80

Storage Temperature Range

-40 to +80

Fiber Jacket & Fiber Length

cm

Customize

Package Dimensions- 1

mm

100*80*10 or Customize

Package Dimensions- 2

mm

LGX Compatible

Package Dimensions- 3

mm

19”IU Rack Mounted

Connector Type

--

SC/LC/FC or Customize

Fiber Type and Jacker Color


G.652D/G.657A1(Customized)

*0.3dB will be added on IL with connectors pairs included.
