E2000/APC SM Connector

E2000/APC SM Connector

PHX design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.
Get Quote Now
E2000/APC SM Connector
E2000/APC SM Connector
E2000/APC SM Connector
E2000/APC SM Connector

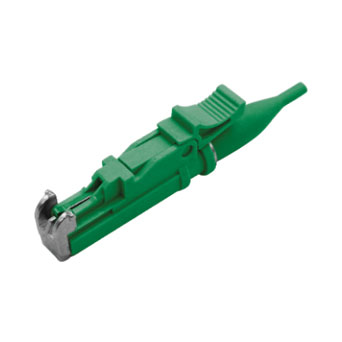

E2000 APC 0.9mm Connector

E2000 APC 0.9mm Connector

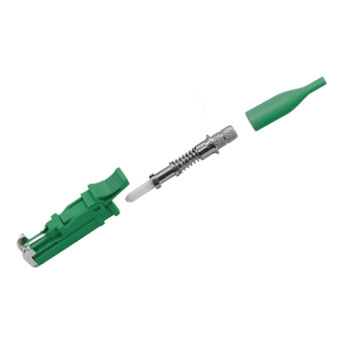

Connector Parts: Dust Cap, Green Outer Housing, Ferrule Assembly, Spring, Stopper, Green boot

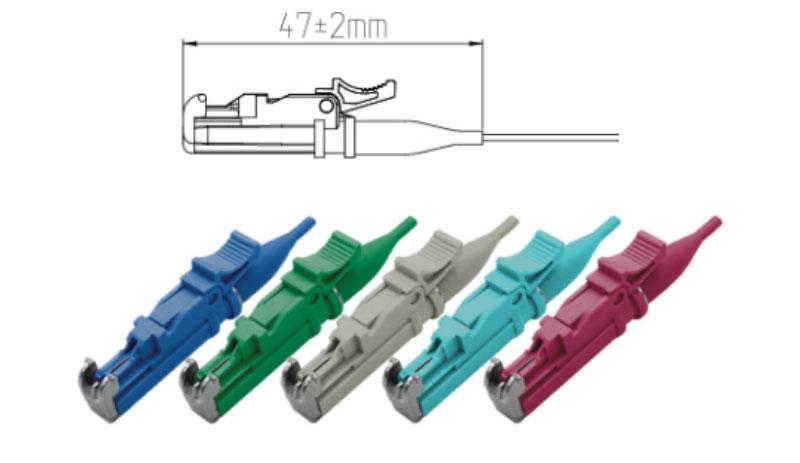

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

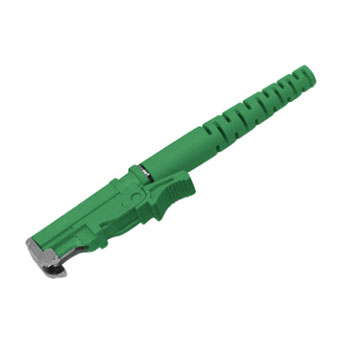

E2000 APC 3.0mm Connector

E2000 APC 3.0mm Connector

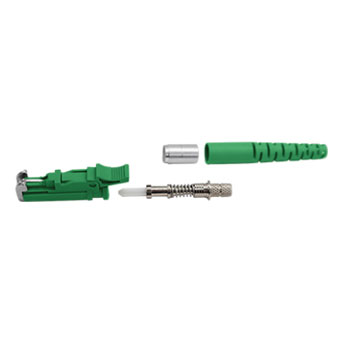

Connector Parts: Dust Cap, Front Sleeve, Outer Frame, Ferrule Assembly, Spring, Adjusted Rear Sleeve, Riveting Ring, Ring, Black boot

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Specification of E2000 APC 0.9mm Connector

Fiber Count

Simplex

Insertion Loss

≤0.25dB

Fiber Mode

Single Mode

Return Loss

≥60dB (APC)

Polish Type

APC

Durability

>1000times

Cable Diameter

0.9mm

Operating Temp

-40~85°C

Operating wavelength

1310nm, 1550nm

Ferrule Concentricity

≤1um



Specification of E2000 APC 3.0mm Connector

Fiber Count

Simplex

Insertion Loss

≤0.25dB

Fiber Mode

Single Mode

Return Loss

≥60dB (UPC)

Polish Type

APC

Durability

>1000times

Cable Diameter

3.0mm

Operating Temp

-40~85°C

Operating wavelength

1310nm, 1550nm

Ferrule Concentricity

≤1um
