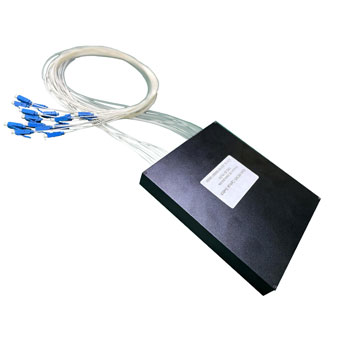

MEMS MxN Matrix Type Optical Switch

MEMS MxN Matrix Type Optical Switch

OE photonics ' MxN MatrixOptical Switch is an optical switch based on MEMS (Micro Electromechanical System) technology, which allows channel selection between single input light and N output lights. It has the characteristics of compact size, excellent durability and stable reliability. It is widely used in optical network fields such as OADM, OXC, OPM and so on.
Get Quote Now
MEMS MxN Matrix Type Optical Switch

Features of MEMS MxN Matrix Type Optical Switch

1. Compact size

2. High repeatability and stability

3. TTL Parallel or I2C Serial Control Interface

4. Meets GR-1209 and GR-1221 standards


Applications of MEMS MxN Matrix Type Optical Switch

1. Fiber monitoring

2. Data center

3. Fiber sensing


Main Specifications of MEMS MxN Matrix Type Optical Switch

Parameters

Unit

Value

Number of channels

CH

4×4

4×8

8×8

Wavelength

nm

1310±20 or 1550±20 or 1625±20

Insertion Loss(Max)

dB

1.6

Return Loss

dB

≥50

Repeatability

dB

0.03dB Max

Crosstalk

dB

≥50

PDL

dB

≤0.15

WDL

dB

≤0.3@CWL±20nm,23℃

TDL

dB

<0.4dB

Operation Temperature

-5~+70

Storage Temperature

-40~+85

Switch Time

ms

≤20

Durability

V

5 ~12

Note: 1. The above test loss (IL) is based on the test results at 23 ℃ at the central wavelength ± 20nm;

2. Repeatability is defined after 100 cycles.

3. Excluding the connector, the insertion loss of the connector is increased by 0.2dB.

4. IL is for single-band. Dual-band adds 0.3 dB.

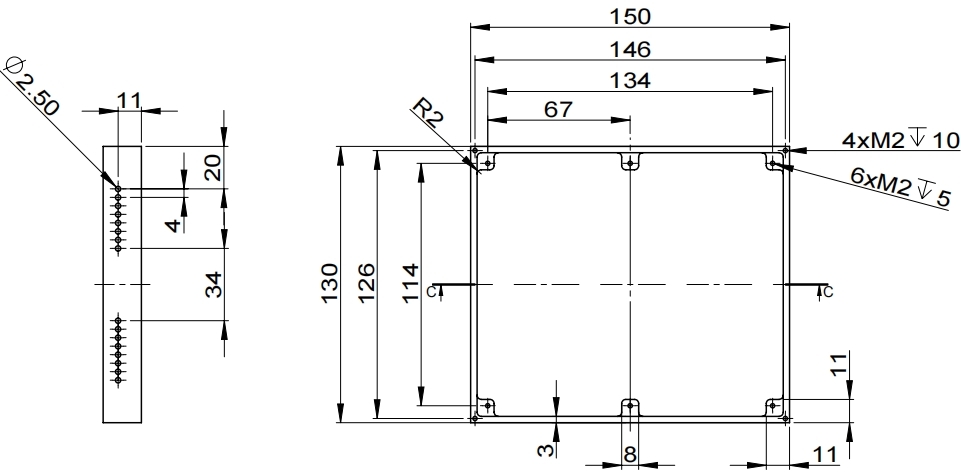

Dimension (8x8Matrix Type Optical Switch ) of MEMS MxN Matrix Type Optical Switch

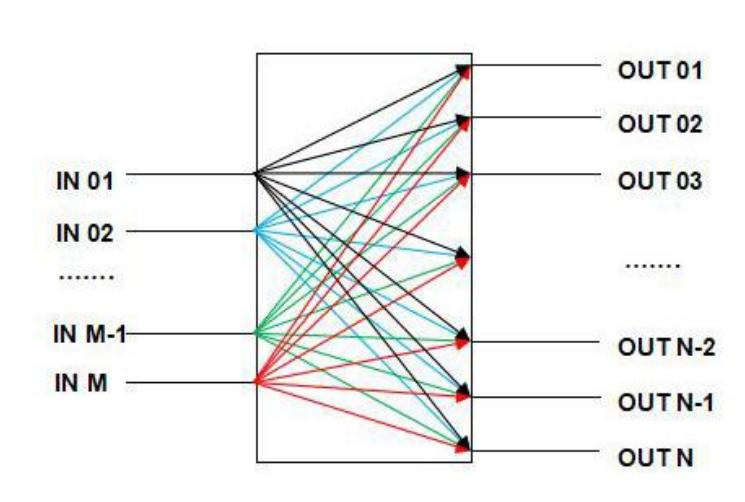

Principle of Optical Path Switching of MEMS MxN Matrix Type Optical Switch

The optical MxN switch is a non-locking product. When the voltage is removed, the mirror returns to the initial position and the input is uncoupled to any output channel. The principle of optical path switching is shown in the figure below.




Order Information of MEMS MxN Matrix Type Optical Switch


OE-MS-M×N-A-B-C-D-E(MS: MEMS Optical Switch)

M×N

A

B

C

D

E

Optical Switch

Type

Fiber

Type

Test

Wavelength

Tube

Type

Fiber Length

Connector

4×4

4×8

8×8

SM: SM,9/125

MM

X: Others

1550:1550nm

X:Others

90:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X: Others

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

X:Others


Note:1. The above specifications just show the typical performance of the Module.

2. Please contact our sales to discuss your specific requirements.
