MPO/MTP Data Center Solution

MPO/MTP Data Center Solution

MPO is the abbreviation of "Multiple-Fiber Push-On/Pull-off", which is a high-density and high-performance solution that can replace 12 or 24 LC connectors with only one MPO/MTP connector. They feature faster speed, easier installation, lower cost, pre-termination and higher density with less space compared with traditional fiber products. That is why they are widely applied in data center. PHXFIBER can supply cost-effective and customized MPO/MTP solution.

Different Types of MTP/MPO Data Center Solution

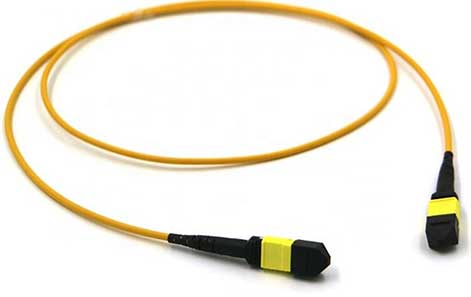

MPO/MTP Trunk Cable
Each MPO/MTP Trunk can run 4 to 96 fibers and distribute multiple data channels to meet data center high density request.
Learn More

MPO/MTP Trunk Cable

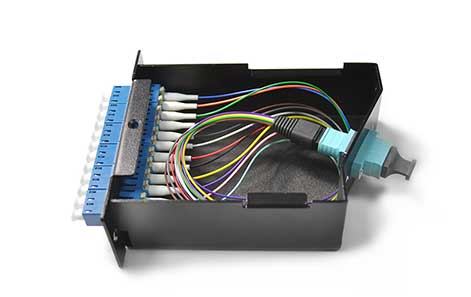

MPO/MTP Assembly
Generally a MPO fiber optic patch panel is 19’patch panel rack with MPO/MPT interface, help to organize a group of cables. A MPO/MTP Patch Panel is designed to manage high density connections within a 19’ patch panel. Usually a panel can hold up to 4 or 5 cassette modules.
Learn More

MPO/MTP Assembly

The Advantages of MPO/MTP Data Center Solution

The Advantages of MPO/MTP Data Center Solution
The Advantages of MPO/MTP Data Center Solution

Faster and easier installation.

The Advantages of MPO/MTP Data Center Solution
The Advantages of MPO/MTP Data Center Solution

Higher density with less space.

The Advantages of MPO/MTP Data Center Solution
The Advantages of MPO/MTP Data Center Solution

Simple update to 40G/100G system.

The Advantages of MPO/MTP Data Center Solution
The Advantages of MPO/MTP Data Center Solution

Reliable performance.

FAQs of MPO/MTP Data Center Solution

What is MPO cable?

MPO stands for "Multiple-Fiber Push-On/Pull-off", it can replace 12 or 24 LC connectors with only one MPO/MTP connector. An MPO cable is a high-volume data cable that can use one cable to connect with multi cables instead of connecting 12 or 24 separate fiber cables.

What is the difference between MPO and MTP?

MTP is a type of MPO, an enhanced version of MPO, it has better mechanical and optical performance.
There are 3 main differences refer to mechanical design.
MTP has a floating ferrule that can improve physical contact, while an MPO doesn’t have a floating ferrule.
The shape of guide pins is different, MTP adopts an elliptical guide pin to reduce debris that may fall into the guide pinhole, but MPO uses chamfered shaped guide pin that will produce more debris.
MTP is equipped with metal pin clamps, which are much more durable than the plastic pin clamps adopted by MPO. The oval shape of the spring in MTP can maximize the clearance between the spring and the ribbon fiber to prevent damage to fiber.
Regarding the Optical performance, MTP is of lower insertion loss and higher reliability compared with MPO.

What does MPO connector mean?

MPO is short for "Multiple-Fiber Push-On/Pull-off", which means there are more than 2 fibers in one connector, one MPO connector usually contains 8, 12, 24 fibers.

Is MTP compatible with MPO?

MTP is the improved version of MPO, so it is comply with MPO with better optical and mechanical performance.
