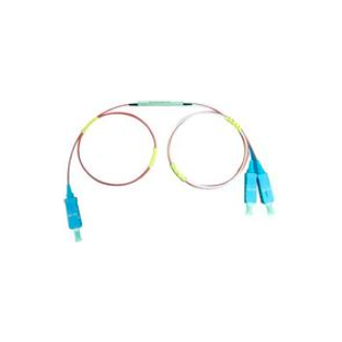

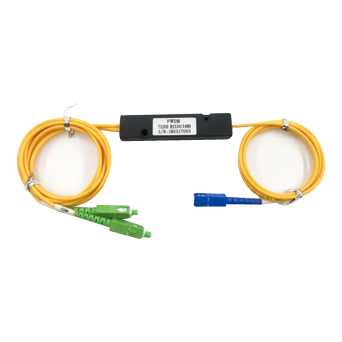

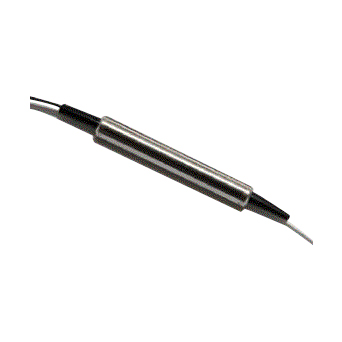

3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)

3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)

PHX's three port filter type wavelength division multiplexer adopts thin-film filter with excellent performance to ensure high-quality optical performance, stability and reliability. The filtered wavelength division multiplexer can realize the transmission and division of optical signals in 1310nm and 1550nm communication windows, and can also realize optical fiber two-way communication. It is widely used in optical fiber upgrading, capacity expansion or the introduction of new integrated services such as radio and television, telecommunications, Internet and so.
Get Quote Now
3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)

Characteristics of 3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)

1. Low insertion loss

2. Low polarization dependent loss

3. High isolation

4. High stability and reliability

parameters of 3 Port Multimode Filtered Wavelength Division Multiplexer (1310/1550)

Parameter

MWDM-53/35

Transmission wavelength (nm)

1500~1600(or 1260~1360)

Reflection wavelength (nm)

1260~1360(or 1500~1600)

Insertion loss (DB)

Reflection channel

≤0.5

Transmission channel

≤0.6

Channel flatness (DB)

≤0.3

Isolation (DB)

Reflection channel

>15

Transmission channel

>40

Insertion loss thermal stability (dB / ℃)

<0.005

Polarization dependent loss (DB)

<0.1

Polarization dispersion (PS)

<0.1

Directivity (DB)

>50

Return loss (DB)

>50

Maximum luminous power (MW)

500

Operating temperature (℃)

-20~+80

Storage temperature (℃)

-40~+85

Package size (mm)

Φ5.5x34, Φ 5.5x38 (900um loose tube)
