Shenzhen Puhuixin Tecnhnology Co., Ltd.
1G/10G Enterprise Switches

1G/10G Enterprise Switches

High Reliability; Outstanding QoS Control; Triple-play Service Support; Comprehensive Network Security Policy.
Get Quote Now

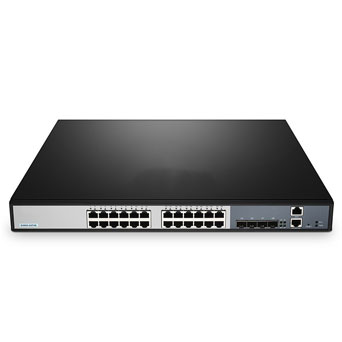

1G/10G Enterprise Switches

Specifications of 1G/10G Enterprise Switches


S5800-48T4S

S5800-48F4SR

Port

Ports

48x 10/100/1000BASE-T
RJ45, 4x 10G SFP+

48x1G SFP, 4x10G SFP+

Max.10G Ports

4

4

Max.1G Ports

52

48

Console Port

1

1

Ethernet Management Port

1

1

USB Port

1

1

Operating System

OS

FSOS

FSOS

Key Components

CPU

SOC (Dual core/ARM A53)

SOC (Dual core/ARM A53)

Performance

Layer Type

Layer 3

Layer 3

Switching Capacity

176 Gbps

176 Gbps

Forwarding Rate

132 Mpps

132 Mpps

DDRIII Capacity

2GB

2GB

Flash Memory

8GB (eMMC)

8GB (eMMC)

RAM

2GB

2GB

Packet Buffer

9MB

9MB

Jumbo Frame

9.6KB

9.6KB

MAC Address

114K

114K

Number of VLANs

4K

4K

MTBF (Hour)

204,935

189901

Authentication Methods

802.1X, AAA

802.1X, AAA

Remote Management Protocol

SNMP, RMON, HTTP
Telnet, SSH

SNMP, RMON, HTTP
Telnet, SSH

Status Indicators

System, LINK activity, PWR

System, LINK activity, PWR

Power

Input Voltage

100-240VAC, 50-60Hz, 2A

100-240VAC, 50-60Hz, 2A

Typical Power Consumption

52W

65W

Max. Power Consumption

55W

70W

Physical and Environmental

Dimensions (H x W x D)

1.73’’x17.5’’x14.6’’
(43.6x440x370mm)

1.73’’x17.5’’x14.6’’
(43.6x440x370mm)

Rack Space

1U

1U

Hot-swappable Power
Supplies

2 (1+1 Redundancy)

2 (1+1 Redundancy)

Redundant Fans

3

3

Airflow

Front-to-Back

Front-to-Back

Acoustic Noise

40dB

40dB

Operating Temperature

0ºC to 45ºC

0ºC to 45ºC

Storage Temperature

‘-40ºC to 70ºC

‘-40ºC to 70ºC

Operating Humidity

0 to 95% (Non-condensing)

0 to 95% (Non-condensing)

Storage Humidity

0 to 95% (Non-condensing)

0 to 95% (Non-condensing)

Weight

13.44 lbs (6.1kg)

13.77 lbs (6.25kg)

Warranty

5 Years

5 Years
