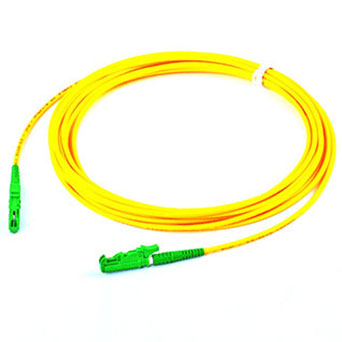

E2000/APC Fiber Optical Patch cord

E2000/APC Fiber Optical Patch cord

PHXFIBER Optical Fiber Patch Cords include LC, FC, SC, ST, MU, MPO/MTP, MTRJ, SMA, E2000 and so on. They are mainly used in fiber optical communication systems, such as CATV, LAN, telecommunications networks, Gigabit applications, ATM Ethernet and other fiber optical instruments or optical measurement systems. The non-standard product can be customized.
Get Quote Now
E2000/APC Fiber Optical Patch cord

Specifications


Parameters

Unit

Min

Typical

Max

Operation Wavelength**

nm

850,980,1060,1310,1550

Insertion Loss*

dB


0.2

0.3

Repeatability (MM)

dB



0.1

Repeatability (SM)

dB



0.15

Durability

dB



0.1

Extinction Ratio (PM)

dB

22

25


Power Handling **

mW



300

Return Loss

dB

50

55

60

Tensile Load

N



5

Operation Temperature

°C

-40


85

Storage Temperature

°C

-40


85

Fiber Type**

NA

HI1060, PM980 fiber, PM1550

*The above specification is without connector.

**Other specifications can be made on customer request.



Ordering Information


POL

XX

XX

X

XX

XX/XX


Operating Wavelength

Fiber Type

Fiber Jacket

Fiber Length

Connector


98=980

SM

B=250um

Fiber Length

E2000APC


03=1030

MM

L=900um

10=1m



55=1550

PM

S=specify

15=1.5m



20=2m





SS=specify
