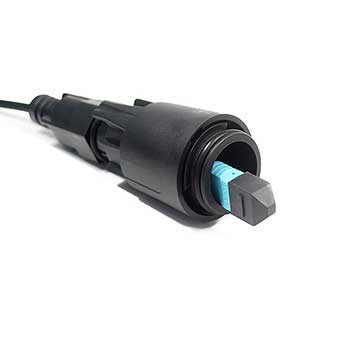

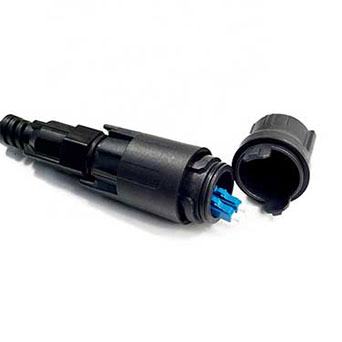

IPFX Outdoor Cable Assembly

IPFX Outdoor Cable Assembly

Factory terminated (tested cables) or Field installable version available. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof and corrosion-resistant. The plug has a tolerance-free design, free-floating on Z-axis. The material in the jumper cable is all-weather and UV-resistant. Mechanical performance: IEC 61754-20 standard. RoHS and REACH materials are compliant. 100% Compatible with FullAXS connectors and has site technical features.
Get Quote Now
IPFX Outdoor Cable Assembly
IPFX Outdoor Cable Assembly

Parameters of IPFX (MPO)

Item

Parameter

Single Mode

Multimode

Standard

Elite

Standard

Elite

Insertion Loss

Typical≤0.30dB

Max≤0.75dB

Typical≤0.15dB

Max≤0.35dB

Typical≤0.50dB

Max≤0.25dB

Typical≤0.10dB

Max≤0.35dB

Return Loss

≥50dB (PC)

≥60dB (APC)

≥55dB (PC)

≥65dB (APC)

≥30dB (PC)

≥30dB (PC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃


Parameters of IPFX (LC) and IPFX (SC)


Item

Parameter

Single mode

Multimode

Insertion loss

Typical value≤0.15dB

Maximum≤0.30dB

Typical value≤0.15dB

Maximum≤0.30dB

Return loss

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

Durability

500 times a plug

Operation Temperature

-40 to + 85℃



Connector Types of IPFX (LC) and IPFX (SC)

Type

Reference

Note

LC

IEC 61754-20

Single mode duplex

APC: Green connectors

UPC: Blue connectors

Multimode duplex

UPC: Grey connectors

SC

IEC 61754-4

Single mode duplex

APC: Green connectors

UPC: Blue connectors

Multimode duplex

UPC: Grey connectors

MPO

IEC 61754-7

Single mode

APC: Green connectors (Standard)

APC: Yellow connectors (Elite)

Multimode

PC: Aqua connectors

MPT

IEC 61754-7

Single mode

APC: Green connectors (Standard)

APC: Yellow connectors (Elite)

Multimode

PC: Aqua connectors


Features

1. Factory terminated (tested cables) or Field installable version available.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. IP67 water, dust proof and corrosion resistant.

5. Plug has tolerance free design, free floating on Z-axis.

6. The material in the jumpel cable are all-weather and UV-resistan.

7. IPFX(LC) , Mechanical performance: IEC 61754-20 standard.

8. Mechanical performance: IEC 61754-4 standard.

9. Mechanical performance: IEC 61754-7 standard.

10. RoHS and REACH materials compliant .

11. 100% Compatible with FullAXS Connectors and has site tehnical features.


Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.
