Shenzhen Puhuixin Tecnhnology Co., Ltd.

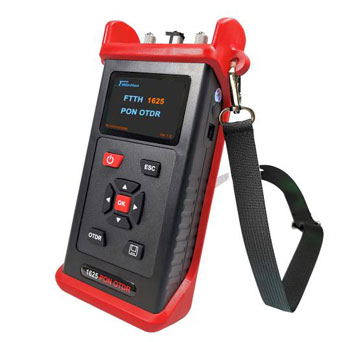

TWH-1625 & TWH-6118 FTTH PON OTDR

1625 FTTH PON OTDR

This pon otdr tester is developed and designed by adopting a single wavelength 1625nm, based on the full understanding of FTTH network. It replaces the pon otdr tester with multi-wavelength in one (1310/1550/1625) on the market, reduces purchase and operation costs, completely meets the demand of rapid troubleshooting from end users during maintenance work. It is one user-friendly and professional FTTH tester. Contact us to get more information on this otdr 1625.
Get Quote Now
1625 FTTH PON OTDR

Product Parameters of TWH-1625 & TWH-6118 FTTH PON OTDR for Sale

Test Dead Zone

≤12m

Reflection Event Dead Zone

≤10m

Attenuation Event Dead Zone

≤30m

Distance Resolution

1m

Pulse Width

10ns-500ns

Distance Uncertainty

±(0.8m ± 0.01% * Test distance ± Resolution)

Loss Event Threshold

>0.8dB

Loss Resolution

 0.1dB

Type of Connector

FC/PC or SC/PC

OPM Wavelength

(850,1300,1310,1490,1550,1625)nm

VFL

10mw (Standard) 20mw(Option)

Storage Item

100

Display

2.8” TFT Color LCD Screen

Port

Mini USB

Battery

5# AA Battery, Rechargeable Battery;

USD Power Supply

Working Hours

Standby>15h, Measurement>6h

Dimension

210mm*120mm*55mm(With sheath)

Weight

About 450g

Storage Temperature

-20 -- +60 ℃, <90%RH

Working Temperature

-10 -- +50 ℃, <90%RH
