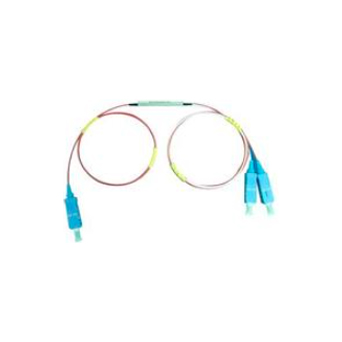

PHX's three port filter type wavelength division multiplexer adopts thin-film filter with excellent performance to ensure high-quality optical performance, stability and reliability. The filtered wavelength division multiplexer can realize 1550nm / 1480nm transmission and 1550nm / 980nm transmission. The transmission capacity is twice that of a single optical fiber to realize optical fiber two-way communication. It is widely used in optical fiber upgrading, capacity expansion or the introduction of new integrated services such as radio and television, telecommunications, Internet and so on.
Get Quote Now
Filtered WDM (980/1550, 1480/1550)

Characteristics of Filtered WDM (980/1550, 1480/1550)

1. Low insertion loss

2. Low polarization dependent loss

3. High isolation

4. High stability and reliability

Parameters of Filtered WDM (980/1550, 1480/1550)

Parameter

MWDM-54

MWDM-59

Transmission wavelength (nm)

1530~1565

1525~1600

Reflection wavelength (nm)

1450~1490

965~1000

Insertion loss (DB)

Reflection channel

≤0.5

≤0.7

Transmission channel

≤0.6

≤0.9

Channel flatness (DB)

<0.3

Isolation (DB)

Reflection channel

>15

>15

Transmission channel

>25

>30

Insertion loss thermal stability (dB / ℃)

<0.005

Polarization dependent loss (DB)

<0.1

Polarization dispersion (PS)

<0.1

Directivity (DB)

>50

Return loss (DB)

>50

Maximum luminous power (MW)

500

Operating temperature (℃)

-10~+75

Storage temperature (℃)

-40~+85

Fiber type

Corning SM-28e

Common end & Reflection end: Corning hi 1060 optical fiber transmission end: Corning smf-28e

Package size (mm)

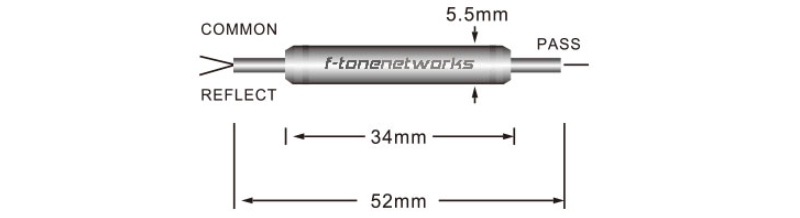

Φ5.5x34, Φ 5.5x38 (900um loose tube)
