MPO/MTP Fiber Optic Patch Panel

MPO/MTP Fiber Optic Patch Panel

MPO/MTP fiber patch panel is suitable for 19-inch standard frame, and it is suitable for ribbon and single fiber. Compact design for space-saving. Front mark on the plate is easy for identification and operation. Standard size, light weight, and reasonable structure. Easy for management and operation. Modular design, which can be used in multiple module boxes and configured in MPO-LC Type Distribution Box. The MPO ribbon multicore fiber is divided into multiple LC interfaces to realize the parallel conversion of MPO-LC. As a professional fiber optic patch panel supplier, PHXFIBER provides fiber patch panel with high quality and unique design. The MPO/MTP fiber patch panel is easy for management and operation. We have experience in producing many MPO/MTP fiber patch panel types.
Get Quote Now
MPO/MTP Fiber Optic Patch Panel

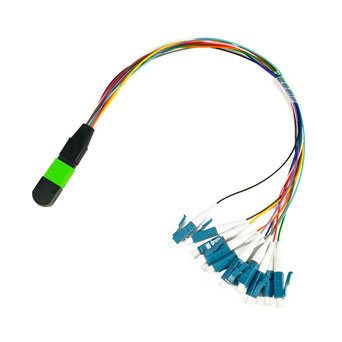

MPO&MTP Optical Characteristics of MPO/MTP Fan out 0.9mm Patch Cords

Item

Parameter

Reference

Single Mode

Multimode

Standard

Elite

Standard

Elite

Insertion Loss

Typical value≤0.3dB

Maximum≤0.75dB

Typical value≤0.15dB

Maximum≤0.35dB

Typical value≤0.5dB

Maximum≤0.25dB

Typical value≤0.10dB

Maximum≤0.35dB

IEC 61300-3-34

Return Loss

≥60dB (APC)

≥50dB (UPC)

≥65dB (APC)

≥55dB (UPC)

≥30dB (UPC)

≥30dB (UPC)

IEC 61300-3-6
