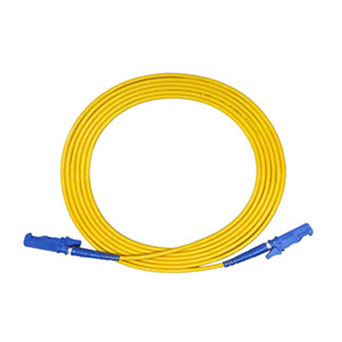

E2000/UPC Fiber Optic Patch Cord

E2000/UPC Fiber Optic Patch Cord

PHXFIBER Optical Fiber Patch Cords include LC, FC, SC, ST, MU, MPO/MTP, MTRJ, SMA, E2000 and so on. They are mainly used in fiber optical communication systems, such as CATV, LAN, telecommunications networks, Gigabit applications, ATM Ethernet and other fiber optical instruments or optical measurement systems. Non-standard product can be customized.
Get Quote Now
E2000/UPC Fiber Optic Patch Cord

Specifications of E2000UPC  Fiber Optic Patch Cord

Parameters

Unit

Min

Typical

Max

Operation Wavelength

nm

850, 980, 1060, 1310, 1550

Insertion Loss

dB


0.2

0.3

Repeatability (MM)

dB



0.1

Repeatability (SM)

dB



0.15

Durability

dB



0.1

Extinction Ratio (PM)

dB

22

25


Power Handling

mW



300

Return Loss

dB

50

55

60

Tensile Load

N



5

Operation Temperature

°C

-40


85

Storage Temperature

°C

-40


85

Fiber Type

NA

HI1060, PM980 fiber, PM1550



Ordering Information of E2000UPC Fiber Optic Patch Cord

POL

XX

XX

X

XX

XX/XX


Operating Wavelength

Fiber Type

Fiber Jacket

Fiber Length

Connector


98=980

SM

B=250um

Fiber Length

E2000UPC


03=1030

MM

L=900um

10=1m



55=1550

PM

S=specify

15=1.5m
