MPO/MTP Harnesses Cable

MPO/MTP Harnesses Cable

Optical fiber communication systems engineering. Data communication network. Optical System Access network. Storage area networking fiber channel. High density architectures.
Get Quote Now

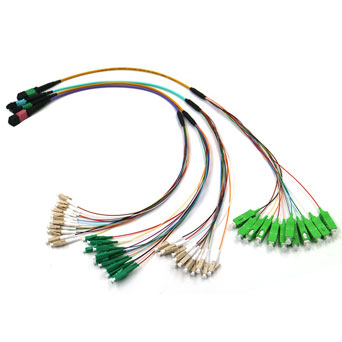

MPO/MTP Harnesses Cable

Cable Parameters of MPO/MTP Harnesses Cable

Cable

Count

Out sheath

Diameter

(MM)

Weight

(KG)

Max.tensile Strength(N)

Max.Crush Resistance

(N/100mm)

Min.Bending

Radius (mm)

short term

long term

short term

long term

short term

long term

8

3.0±0.15

6.8

180

90

500

150

20D

10D

12

3.0±0.15

7.0

180

90

500

150

20D

10D

48

9.5±0.3

79

500

180

1000

300

20D

10D


MPO&MTP Optical Characteristics of MPO/MTP Harnesses Cable


Item

Parameter

Reference

Single mode

Multimode

Standard

Elite

Standard

Elite

Insertion loss

Typical value≤0.3dB

Maximum≤0.75dB

Typical value≤0.15dB

Maximum≤0.35dB

Typical value≤0.5dB

Maximum≤0.25dB

Typical value≤0.10dB

Maximum≤0.35dB

IEC 61300-3-34

Return loss

≥60dB(APC)

≥50dB(UPC)

≥65dB(APC)

≥55dB(UPC)

≥30dB(UPC)

≥30dB(UPC)

IEC 61300-3-6


LC/SC/FC/ST Optical Characteristics

Item

Parameter

Reference

Single mode

Multimode

Insertion loss

Typical value≤0.15dB

Maximum≤0.3dB

Typical value≤0.15dB

Maximum≤0.3dB

IEC 61300-3-34

Return loss

≥60dB(APC)

≥50dB(UPC)

≥30dB(UPC)

IEC 61300-3-6


Features

1. 100% pre-terminated and tested in the factory to ensure transfer performance

2. Rapid configuration and networking, reduce installation time.

3. Supports 40G and 100G network applications.

4. Jacket material: LSZH, OFNR, OFNP available.

5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.


Application

1. Data communication network.

2. Optical System Access network.

3. Storage area networking fiber channel.

4. High-density architectures.
