MEMS 1xN(2≤N≤48) Optical Switch With External PCB

MEMS 1xN(2≤N≤48) Optical Switch With External PCB

MEMS 1xN Optical Switch is an optical switch based on MEMS (Micro Electromechanical System) technology, which allows channel selection between single input light and N output lights. It has the characteristics of compact size, excellent durability and stable reliability. It is widely used in optical network fields such as OADM, OXC, OPM and so on.
Get Quote Now

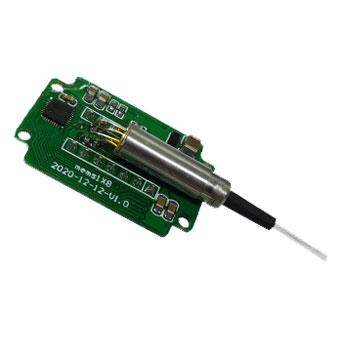

MEMS 1xN(2≤N≤48) Optical Switch With External PCB

Features of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

1. Compact size

2. High repeatability and stability

3. TTL Parallel or I2C Serial Control Interface

4. Meets GR-1209 and GR-1221 standards


Applications of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

1. Fiber monitoring

2. Data center

3. Fiber sensing

Main Specifications of MEMS 1xN(2≤N≤48) Optical Switch With External PCB


Parameters

Unit

Value

Number of channels

CH

2

4

8

12

16

24

32

48

Wavelength

nm

1310±20 or 1550±20 or 1625±20

Insertion Loss(Max)

dB

0.5

0.7

0.8

1

1

1.2

1.4

1.5

Return Loss

dB

≥50

Repeatability

dB

0.03dB Max

Crosstalk

dB

≥50

PDL

dB

≤0.15

WDL

dB

≤0.3@CWL±20nm,23℃

TDL

dB

<0.4dB

Operation Temperature

-5~70

Storage Temperature

-40~85

Switch Time

ms

≤30

Durability

cycle

≥1×10^9

Control Voltage

V

5~12

Note: 1. The above test loss (IL) is based on the test results at 23 ℃ at the central wavelength ± 20nm.


2. Repeatability is defined after 100 cycles.

3. Excluding the connector, the insertion loss of the connector is increased by 0.2dB.

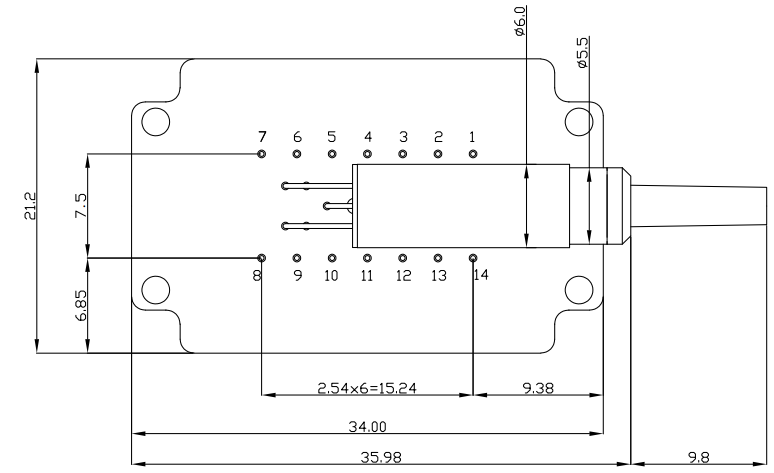

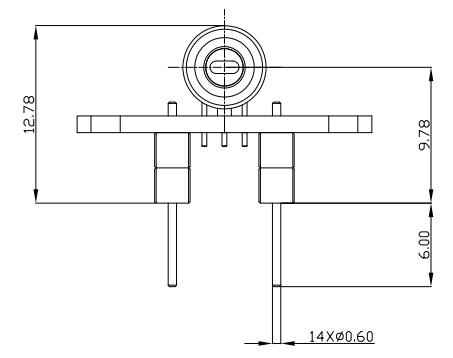

Dimension (MEMS 1x2/4/8 Optical Switch) of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

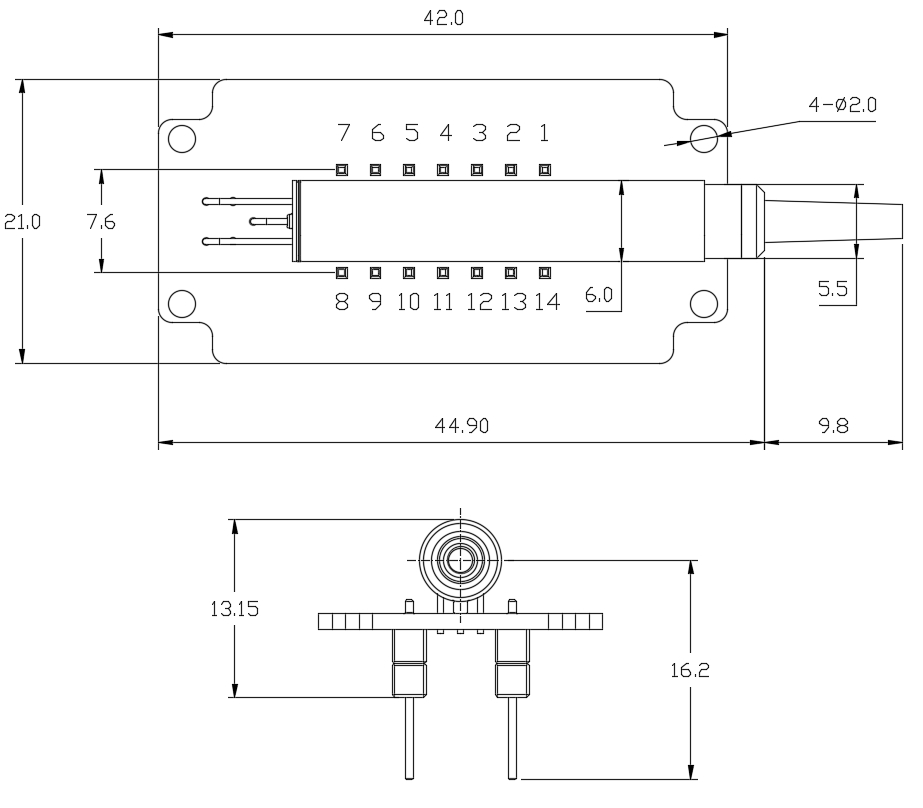

Dimension (MEMS 1x12x16/24/32/48 Optical Switch) of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

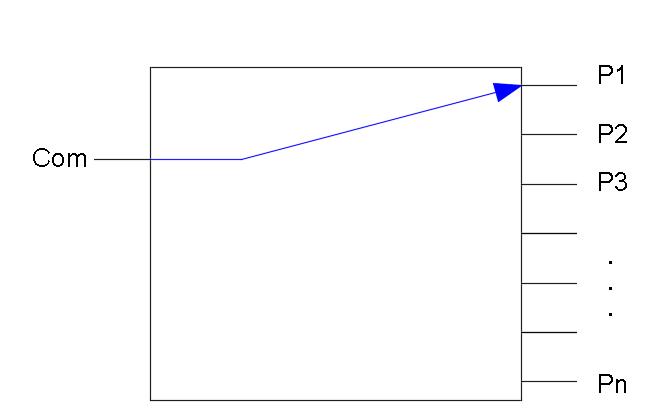

Principle of Optical Path Switching of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

The optical 1xN switch is a non-locking product. When the voltage is removed, the mirror returns to the initial position and the input is uncoupled to any output channel. The principle of optical path switching is shown in figure below.



Order Information of MEMS 1xN(2≤N≤48) Optical Switch With External PCB

OE-MS-1×N--A-B-C-D-E-F-G (MS: MEMS Optical Switch)


N

A

B

C

D

E

F

G

Output Number

Fiber

Type

Package

Type

Test

Wavelength

Tube

Type

Fiber Length

Connector

Control Interface

2:2

4:4

8:8

12:12

16:16

24:24

32:32

48:48


SM:SM,9/125

X:Others

P1: External PCB-1

P2: External PCB-2



1310:1310nm

1550:1550nm

1315:1310&1550nm


25:250um

90:900um

X:Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X:Others

OO:None

FP:FC/PC

FA:FC/APC

SP:SC/PC

SA:SC/APC

LP:LC/PC

LA:LC/APC

X:Others

TTL/RS232

TTL/ I2C

TTL/I2C/RS232

Note:1. The above specifications just show the typical performance of the Module.

2. Please contact our sales to discuss your specific requirements.
