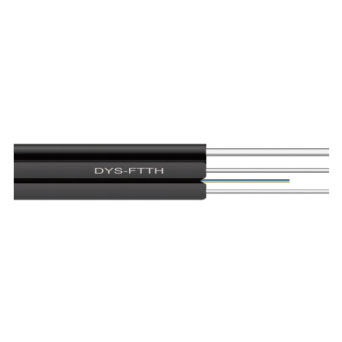

GJYXFCH Self-support Flat Drop Cable

GJYXFCH Self-support Flat Drop Cable

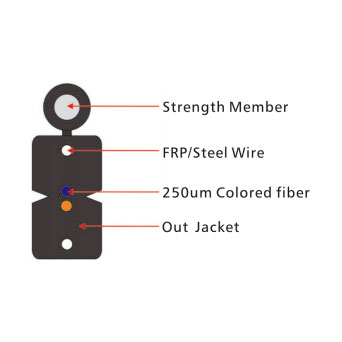

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A). The cable is protected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH projects.
Get Quote Now
GJYXFCH Self-support Flat Drop Cable
GJYXFCH Self-support Flat Drop Cable

Features of GJYXFCH Self-support Flat Drop Cable

• Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.

• Meet the requirement of thunder-proof, anti-rodent or waterproof.

• Good to use for fiber to the home last mile solution.



Application of GJYXFCH Self-support Flat Drop Cable

• Outdoor aerial application.

• Used in the FTTH projects.

• High speed optical routes in building.


Technical Parameters of GJYXFCH Self-support Flat Drop Cable

Cable type

OD(mm)

Nominal

Weight

(kg/km)

Tensile Strength(N)

Bending Radius(mm)

Crush Resistance(N/100MM)

Short-term

Long-term

Dynamic

Static

Short-

term

Long-

term

GJYXFH-1xn

(2.0±0.1)*(6.2±0.3)

23.6

600

300

20D

15D

2200

1000

GJYXFH-1xn

(2.0±0.1)*(6.2±0.3)

23.6

600

300

20D

15D

2200

1000

GJYXFH-1xn

(2.0±0.1)*(6.2±0.3)

23.6

600

300

20D

15D

2200

1000

GJYXFH-1xn

(2.0±0.1)*(6.2±0.3)

23.6

600

300

20D

15D

2200

1000

Storage/Working temperature(℃)

-20~+60

Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length of GJYXFCH Self-support Flat Drop Cable

• Standard wooden drum with protection.

• Standard reel length:2/3 km/reel, other length is also available.
