FTTH-022 Optical Fiber Panel

FTTH-022 Optical Fiber Panel

The FTTH-022 is a floor-mounted or wall-mounted termination box for end-user, indoor use, capable to handle fiber fusion, capable to handle fiber fusion, fiber cable, and pigtails.
Get Quote Now

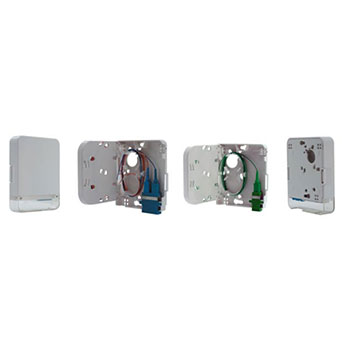

FTTH-022 Optical Fiber Panel

Specifications of FTTH-022 Optical Fiber Panel

Parameter

Value

Remark

Model

FTTH-022


Outside Dimension (mm)

116*86*23


Material

Plastic


Color

White


Storage of Fibers

G.657


Splice Capacity

2Fiber


Splice Method

Fusion Splice

45mm Sleeve

Adapter Type and Count

SC, 2SC


Input Cable

3mm or figure 8 (2*3mm)

From Side or Bottom


Application of FTTH-022 Optical Fiber Panel

The FTTH-022 is a kind of indoor fiber termination box designed for end-user applications, suitable for both floor and wall mounting. This indoor fiber termination box is capable to handle fiber fusion, fiber cables and pigtails.


Features of FTTH-022 Optical Fiber Panel

  1. Support termination, splicing and storage for fiber optic cable systems.

  2. uitable for one adapter, SC simplex or 2SC configuration.

  3. Compatible with G.657A1 and G.657B3.

  4. Compact structure and perfect fiber management .

  5. Engineered fiber routing protect bend radius through the unit to ensure signal integrity.

  6. Applicable for wall-mounted and compatible with flush-mount outlet.
